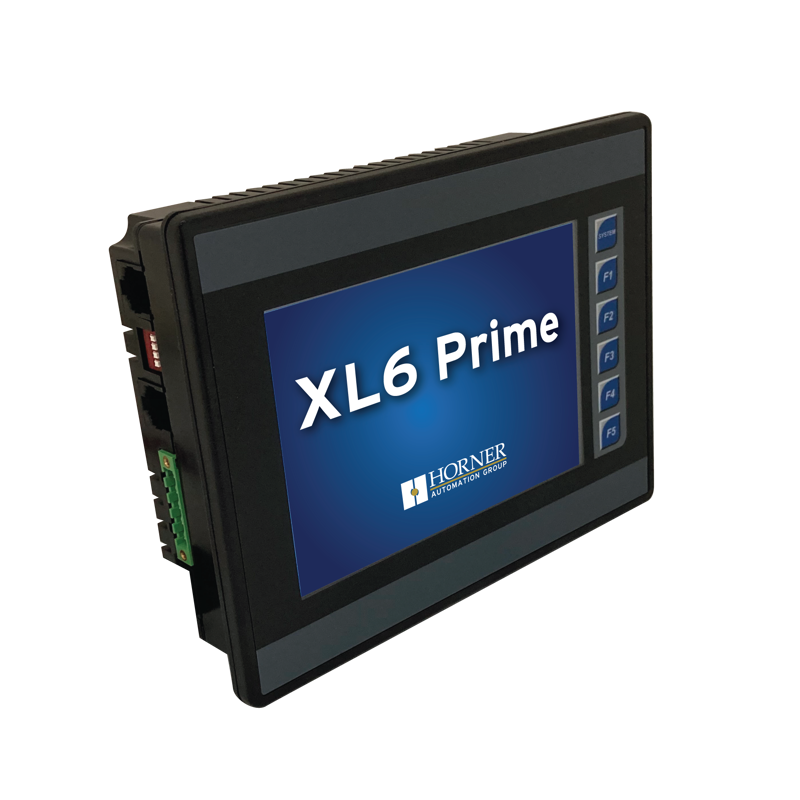

XL6 Prime Controller 5.7" with Improved Performance, no built in IO, With SAE J1939 license preloaded and CsCAN support removed
SKU: HE-XPL1E0-44
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SAE J1939 Option.
Add -44-part number extension for SAE J1939 communications.
CsCAN support is removed.
Logic engine has a 0.02mS/K logic scan and 1MB of application memory.
It is possible to make logic modifications in real time without having to enter stop mode by using the Online Programming Mode.
Buy currently uses Select Automation shop pricing and checkout.
Features of the operator interface include:
640x480 colour TFT LCD graphics display including a resistive touchscreen with great resolution.
One system key and four function keys.
The mini-B 5pin USB 2.0 On-the-Go port can be programmed.
Using USB FLASH drives, files can be exchanged over the USB 2.0 Host port (A).
ASCII In/Out, PLC/Drive downloading protocols, and RTU/Modbus Master/Slave are supported by one (1) RS-485 port and two (2) RS-232 ports.
Among the networking characteristics are:
10/100 Ethernet port integrated in. Integrated port for CsCAN.
Every unit has a microSD slot that can hold at least 32GB of memory.
