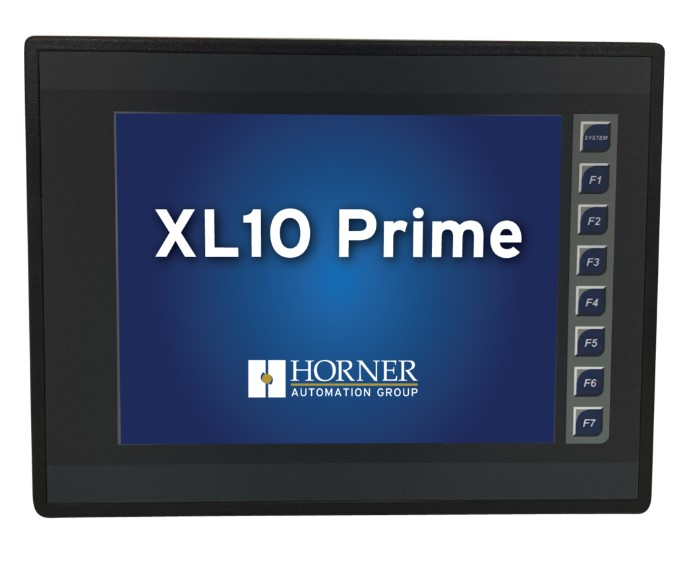

XL10 Prime Controller 10.4" with Improved Performance, 12 DC In, 12 DC Out,
SKU: HE-XPV1E6-602
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
XL10 Prime Controller 10.4" with Improved Performance, 12 DC In, 12 DC Out, 6 Analog In (mA/V/Tc/mV/RTD), 4 Analog Out, dual Ethernet.
With Screw type I/O terminals. Replaces spring type terminals. Model 6 only.
XL10 Prime:
All units feature a built-in logic engine, operator interface, networking, and I/O.
Logic engine features 1MB of application memory with a 0.02mS/K logic scan.
Online Programming Mode (making logic changes on the fly without going thru stop mode) is supported.
Buy currently uses Select Automation shop pricing and checkout.
Operator Interface features include:
640×480 LCD TFT colour graphics display with a high-resolution resistive touchscreen.
5 function keys and a system key.
USB 2.0 On-the-Go port (mini-B 5pin) is available for programming.
USB 2.0 Host port (A) is available for exchanging files with USB FLASH drives.
Two (2) RS-232/485 ports support RTU/Modbus Master/Slave, ASCII In/Out, and
PLC/Drive downloadable protocols.
