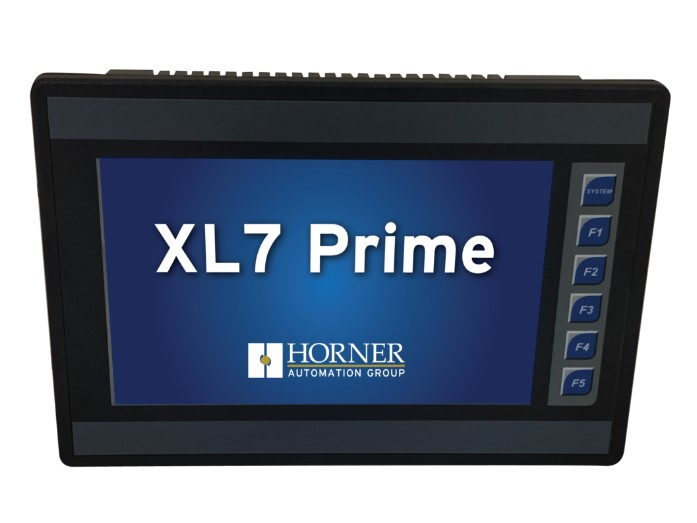

XL7 Prime Controller 7" with Improved Performance, 12 DC In, 6 Relay Out, 4 Analog In, (mA/V), dual Ethernet, With Display Heater
SKU: HE-XPW1E2-22
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
With a 0.02mS/K logic scan and 1MB of application memory, the XL7 Prime is equipped with a HE-Logic engine.
It is possible to make logic modifications in real time without having to enter stop mode by using the Online Programming Mode.
Buy currently uses Select Automation shop pricing and checkout.
Features of the operator interface include:
Featuring a 800x480 LCD TFT colour graphics display and a resistive touchscreen with great quality.
A system key and five function keys.
The mini-B 5pin USB 2.0 On-the-Go port can be programmed.
Using USB FLASH drives, files can be exchanged over the USB 2.0 Host port (A).
(2) ASCII In/Out, PLC/Drive downloading protocols, and RTU/Modbus Master/Slave are supported by RS-232/485 ports.
Among the networking characteristics are:
Two integrated CAN ports that can concurrently support J1939, DeviceNet Scanner, CANopen, and CsCAN.
two 10/100 Ethernet ports integrated in.
Every XL7 Prime device has a microSD slot that can hold up to 32GB of memory.
