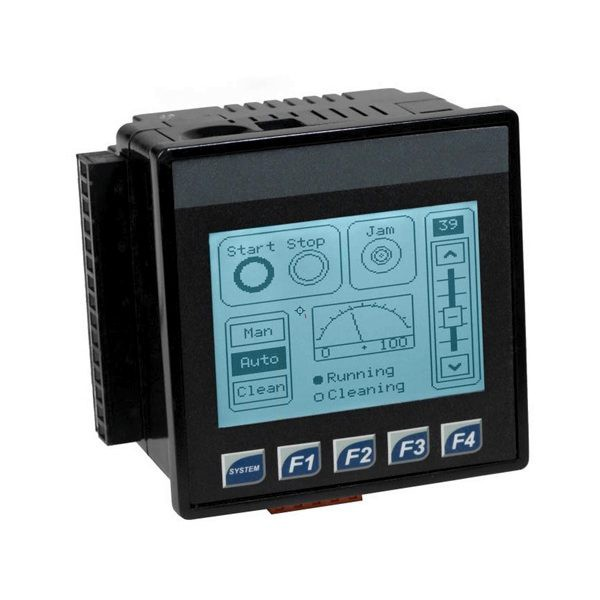

XLT Controller 3.5", 24 DC In, 16 DC Out, 2 Analog In (mA/V)
SKU: HE-XT104
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
XLT Series OCS with high-density DC/DC/ I/O.
Twenty-four ((24) Digital inputs compatible with 12V/24VDC – four (4) inputs can be used for 10kHz – High Speed Counting.
Sixteen (16) DC Outputs – 0. 5A per point- Two (2) outputs can be used as PWM/ pulse-outputs.
Two (2) 10-bit Analog inputs selectable between 0-10V and 4-20mA.
Buy currently uses Select Automation shop pricing and checkout.
Features of the XLT Operator Interface include:
160×128 Sunlight readable graphics display.
High resolution resistive touchscreen.
4 Function keys and a system key.
(2) RS-232/485 ports support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable protocols.
Integrated CsCAN port.
Removable Mass Storage device.
CANopen Master/Slave Support (available as a field installable firmware update, this removes CsCAN support).
With proven success across a wide variety of applications, the XL series is ideal for:
Custom OEM products.
Power management & back-up generation.
Semiconductor applications.
Packaging machinery.
Water treatment.
Compressor control.
Pump control.
Food processing.
Motion control.
Distributed conveyor control.
HVAC/Environmental control.
Mobile machinery.
Automotive parts manufacturing.
