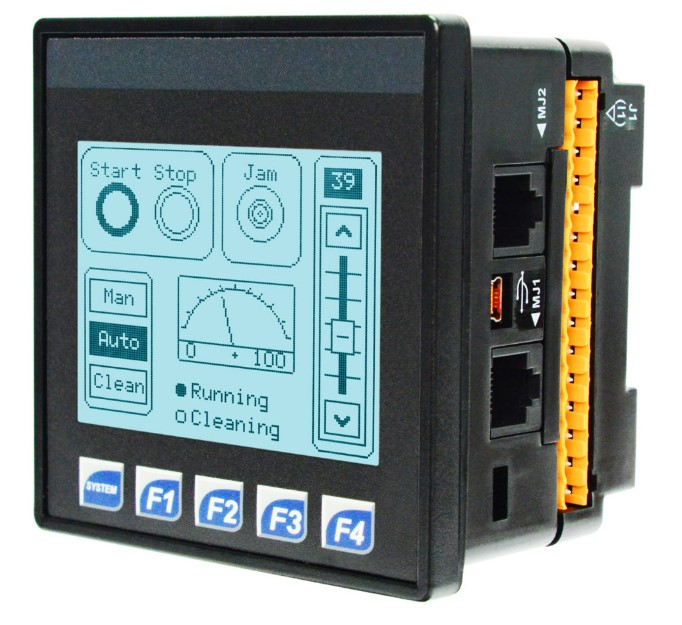

XLTe Controller 3.5", 12 DC In, 12 DC Out, 2 Analog In, (mA/V), With DeviceNet Master
SKU: HE-XT1E3-33
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Features of the XLTe Operator Interface include:
DeviceNet Master option.
For DeviceNet Master Support (Polled & Explicit Connections only), append -33 to the part number.
Support for CsCAN is dropped.
Standard Ethernet.
Sunlight-readable graphics display, 160x128.
Resistive touchscreen with high resolution.
One system key and four function keys.
(2) ASCII In/Out, PLC/Drive downloading protocols, and RTU/Modbus Master/Slave are supported by RS-232/485 ports.
Integrated port for CsCAN.
Disposable mass storage apparatus.
CANopen Master/Slave Support—a firmware update that may be installed on-site—removes support for CsCAN.
Buy currently uses Select Automation shop pricing and checkout.
Controller:
Ladder Logic Memory: 256 KB.
Logic Scan Rate: 0.8 mS/K.
Removable Memory: microSD.
Local Comment Storage: Yes.
Floating Point Support: Yes.
Autotune PID Capable: Yes.
Operator Interface:
Characters / Pixels: 160x128.
Display Technology: Transflective LCD.
Character Height: Selectable fonts.
Number of Pages: 1023.
Fields or Objects per Page: 50.
Total Keys: 5.
Function Keys: 4.
OEM Faceplate Available: Yes.
