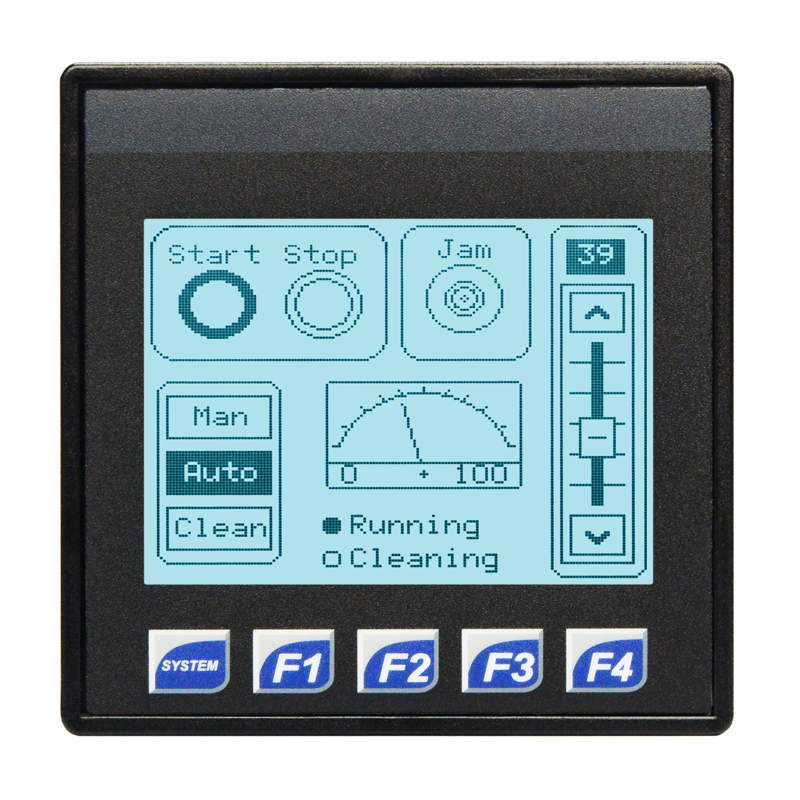

XLTe Controller 3.5", 12 DC in, 12 DC Out, 6 – 14/17-bit Analog In
SKU: HE-XT1E6
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
XLTe Series OCS with Ethernet DC/DC and Universal Analog I/O.
Twelve (12) Digital inputs compatible with 12V/24VDC – four (4) inputs can be used for 500kHz – High Speed Counting.
Twelve (12) DC Outputs – 0. 5A per point- Two (2) outputs can be used as PWM/ pulse-outputs.
Six (6) 14-bit Universal Analog inputs selectable between Thermocouple, RTD, 0- 60V and 4-20mA.
Four (4) 12-bit Analog Outputs selectable between 0-10V and 2-20mA.
Buy currently uses Select Automation shop pricing and checkout.
Features of the XLTe Operator Interface include:
Standard Ethernet.
160×128 Sunlight readable graphics display.
High resolution resistive touchscreen.
4 Function keys and a system key.
(2) RS-232/485 ports support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable protocols.
Integrated CsCAN port.
Removable Mass Storage device.
CANopen Master/Slave Support (available as a field installable firmware update, this removes CsCAN support).
All XLTe units feature a built-in logic engine, operator interface, networking and I/O.
Logic engine features 256KB of application memory with a 0.8mS/K logic scan, and Ethernet standard.
With proven success across a wide variety of applications, the XL series is ideal for:
Custom OEM products.
Power management & back-up generation.
Semiconductor applications.
Packaging machinery.
Water treatment.
Compressor control.
Pump control.
Food processing.
Motion control.
Distributed conveyor control.
HVAC/Environmental control.
Mobile machinery.
Automotive parts manufacturing.
