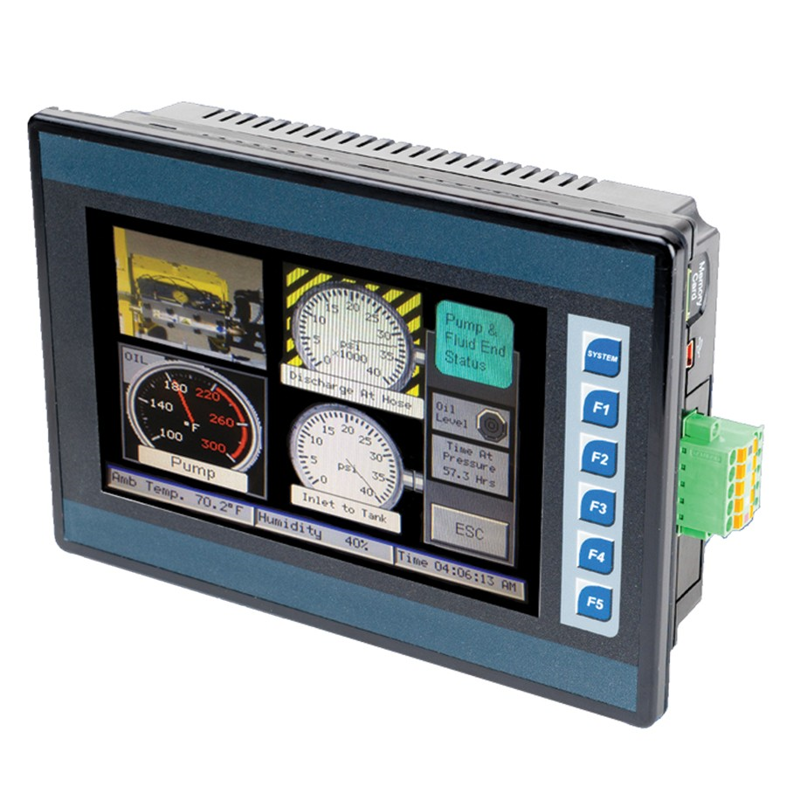

XL7 Controller 7", 12 DC In, 6 Relay Out, 4 Analog In, (mA/V), dual Ethernet and dual CAN, with MQTT License preloaded
SKU: HE-XW1E2-445
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Being replaced by XL7 Prime series:
Replacement Part Number: HE-XPW1E2-445
Description:
MQTT License is pre-loaded.
The HE-Logic engine has a 0.04 mS/K logic scan speed and 1MB of application memory.
It is possible to make logic modifications in real time without having to enter stop mode by using the Online Programming Mode.
Buy currently uses Select Automation shop pricing and checkout.
Features of the operator interface include:
Featuring an 800x480 LCD TFT colour graphics display and a resistive touchscreen with great quality.
A system key and five function keys.
The mini-B 5pin USB 2.0 On-the-Go port can be programmed.
Using USB FLASH drives, files can be exchanged over the USB 2.0 Host port (A).
(2) RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloading protocols are supported by RS-232/485 ports.
Among the networking characteristics are:
Two integrated CAN ports that concurrently handle J1939, DeviceNet Scanner, CANopen, and CsCAN two integrated 10/100 Ethernet ports Every unit has a microSD slot that can hold at least 32GB of memory.
