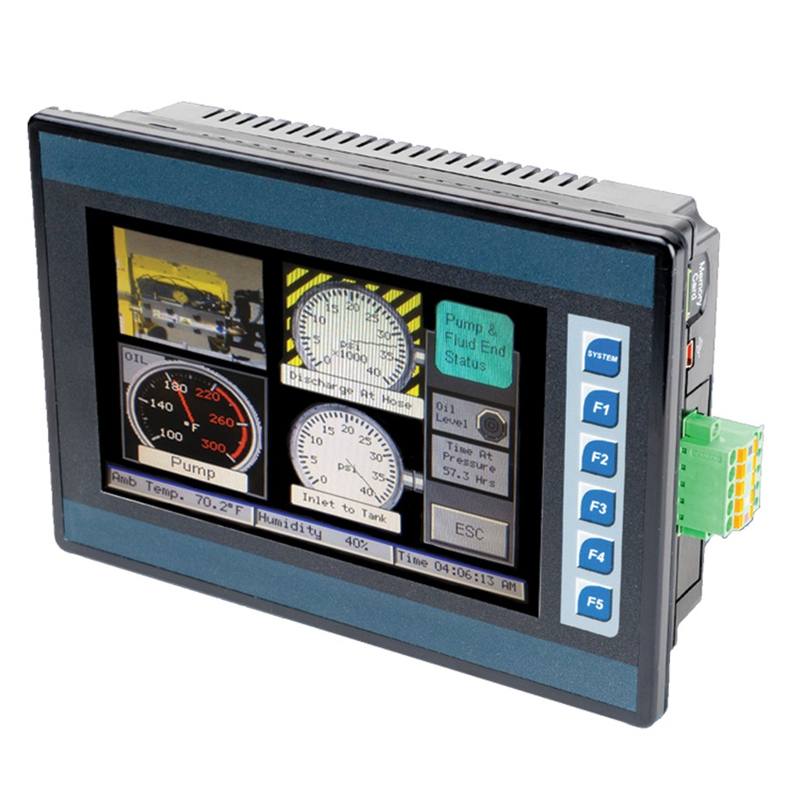

XL7 Controller 7", 12 DC in, 12 DC Out, 2 – 12-bit Analog In

Being replaced by XL7 Prime series: Replacement Part Number: HE-XPW1E3 Description of XL7 Series: XL7 Series OCS with DC/DC/ I/O. Twelve (12) Digital inputs compatible with 12V/24VDC – four (4) inputs can be used for 500kHz – High Speed Counting. Twelve (12) DC Outputs – 0. 5A per point- Two (2) outputs can be used as PWM/ pulseoutputs. Two (2) 12-bit Analog inputs selectable between 0-10V and 4-20mA. All XL7 units feature a built-in logic engine, operator interface, networking, and I/O. HE-Logic engine features 1MB of application memory with a 0.04 mS/K logic scan. Online Programming Mode (making logic changes on the fly without going thru stop mode) is supported. Operator Interface features include: 800×480 LCD TFT colour graphics display with a high-resolution resistive touchscreen. 5 Function keys and a system key. USB 2.0 On-the-Go port (mini-B 5pin) is available for programming. USB 2.0 Host port (A) is available for exchanging files with USB FLASH drives. (2) RS-232/485 Ports support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable protocols.
