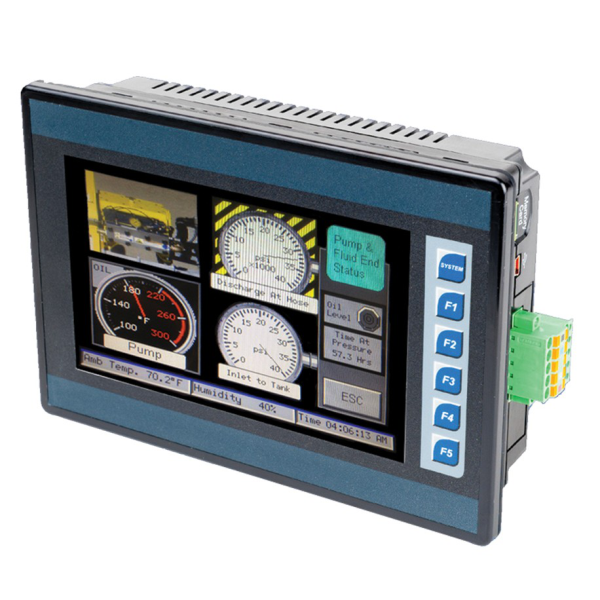

XL7 Controller 7", 24 DC In, 16 DC Out, dual Ethernet and dual CAN
SKU: HE-XW1E4HE
Price on request
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The HE-Logic engine has 1MB of application memory and a 0.04 mS/K logic scan.
Online Programming Mode (making logic changes on the fly without entering stop mode) is supported.
Operator Interface features include:
The 800×480 LCD TFT colour graphics display features a high-resolution resistive touchscreen.
Five function keys and one system key.
The USB 2.0 On-the-Go port (mini-B 5pin) is accessible for programming.
The USB 2.0 Host port (A) is available for file exchange with USB FLASH drives.
(2) The RS-232/485 ports support the RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloading protocols.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
24 DC in, 16 DC Out, 2 – 12-bit Analog In.
Ladder Logic Memory: 1 MB.
Logic Scan Rate: 0.04 mS/K.
Removable Memory: microSD.
Characters / Pixels: 800x480 (WVGA).
Display Technology: 7" TFT Colour.
Character Height: Selectable fonts.
Number of Pages: 1023.
Fields or Objects per Page: 1023.
Total Keys: 6.
Function Keys: 5.
OEM Faceplate Available: Yes.
