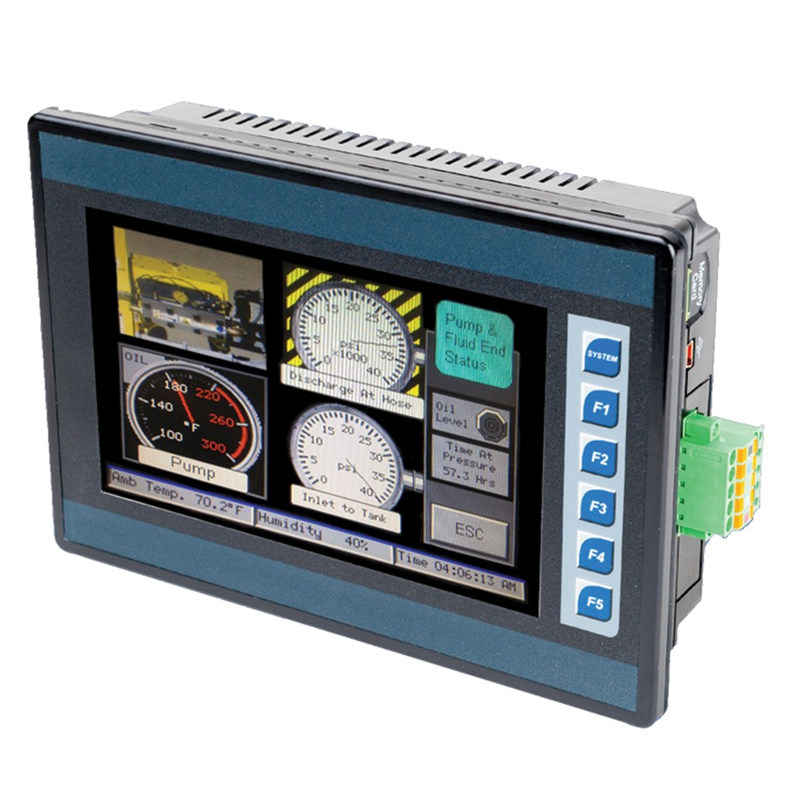

XL7 Controller 7", 12 DC in, 12 DC Out, 2 – 14/16-bit Analog In, With Display Heater
SKU: HE-XW1E5-22
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Being replaced by XL7 Prime series:
Replacement Part Number: HE-XPW1E5-22
Description of XL7 Series:
All XL7 units feature a built-in logic engine, operator interface, networking and I/O.
HE-Logic engine features 1MB of application memory with a 0.04 mS/K logic scan.
Online Programming Mode (making logic changes on the fly without going thru stop mode) is supported.
Operator Interface features include:
800×480 LCD TFT colour graphics display with a high-resolution resistive touchscreen.
5 Function keys and a system key.
USB 2.0 On-the-Go port (mini-B 5pin) is available for programming.
USB 2.0 Host port (A) is available for exchanging files with USB FLASH drives.
(2) RS-232/485 Ports support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable protocols.
Buy currently uses Select Automation shop pricing and checkout.
Networking features include:
(2) Integrated CAN ports that support CsCAN and either CANopen, J1939 or DeviceNet Scanner simultaneously.
(2) Built-in 10/100 Ethernet ports.
All units feature a microSD slot, supporting at least 32GB.
With proven success across a wide variety of applications, the XL series is ideal for:
Custom OEM products.
Power management & back-up generation.
Semiconductor applications.
Packaging machinery.
Water treatment.
Compressor control.
Pump control.
Food processing.
Motion control.
Distributed conveyor control.
HVAC/Environmental control.
Mobile machinery.
Automotive parts manufacturing.
