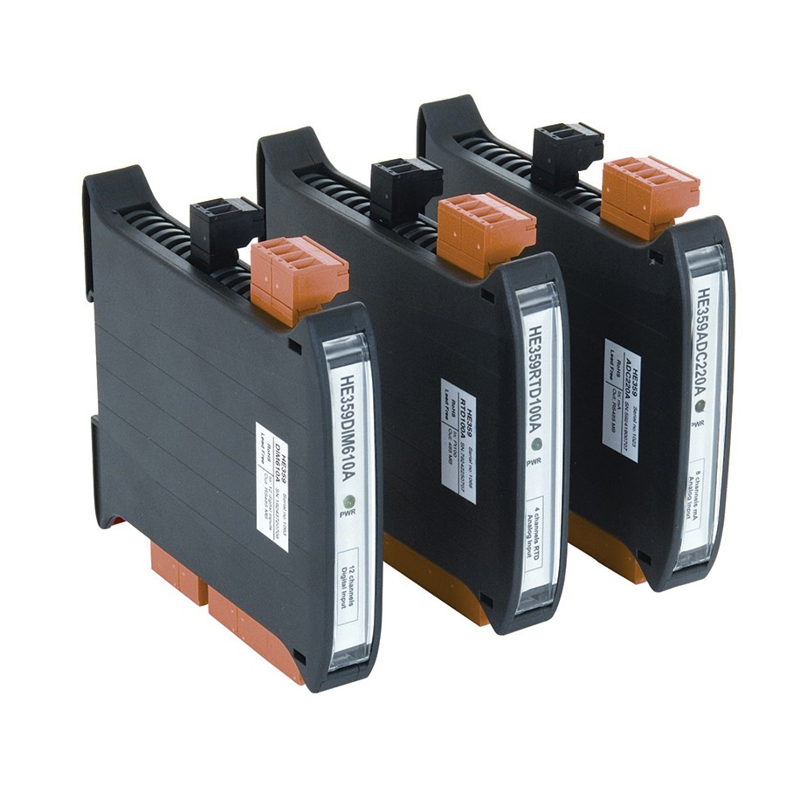

SmartMod, 4 channel RTD Inputs (Pt-100, Ni-100, Pt-1000, Ni-1000)

Description: 4 Channel RTD inputs (Pt-100, Ni-100, Pt-1000, Ni-1000) or Resistance inputs (0-2000ohm). 0.1 Degree Celsius Resolution 2000vac isolation (ch-RS485 & ch-power). Featuring Modbus and a RS485 ½ duplex, SmartMod covers a variety of low cost I/O offerings, such as voltage, current, temperature, and digital. SmartMod I/O is a RTU/Modbus based I/O system designed to fill-out the I/O complement for applications utilizing XLe, LX, or any other OCS/RCS family Controller. As many as 31 SmartMod I/O modules may be daisy chained on a single RS-485 link. SmartMod I/O is DIN-rail mounted, powered from 10-30VDC, and features 2000vac optical isolation.
