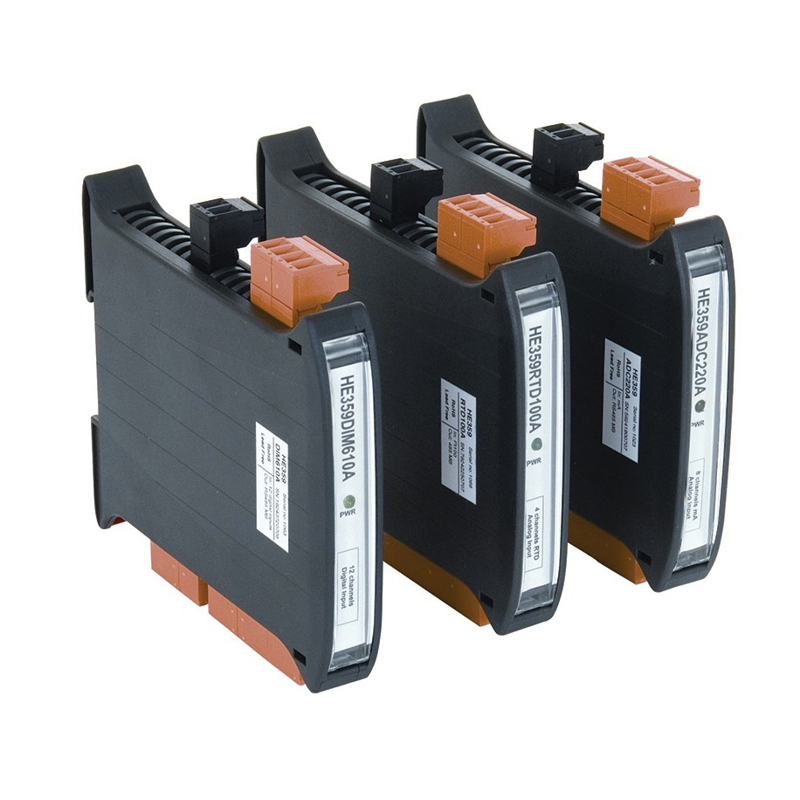

SmartMod, 8 channel Thermocouple Inputs (Types J,K,R,S,B,E,T,N)

Description: 8 Channel Thermocouple input Types (J, K, R, SB, E, T, N) or Millivolt inputs (±1000mV, max) 0.1 degrees Celsius resolution, 2000vac isolation (ch-RS485 & ch-power). Featuring Modbus and a RS485 ½ duplex, SmartMod covers a variety of low cost I/O offerings, such as voltage, current, temperature, and digital. SmartMod I/O is an RTU/Modbus based I/O system designed to fill-out the I/O complement for applications utilizing XLe, LX, or any other OCS/RCS family Controller. As many as 31 SmartMod I/O modules may be daisy chained on a single RS-485 link. SmartMod I/O is DIN-rail mounted, powered from 10-30VDC, and features 2000vac optical isolation.
