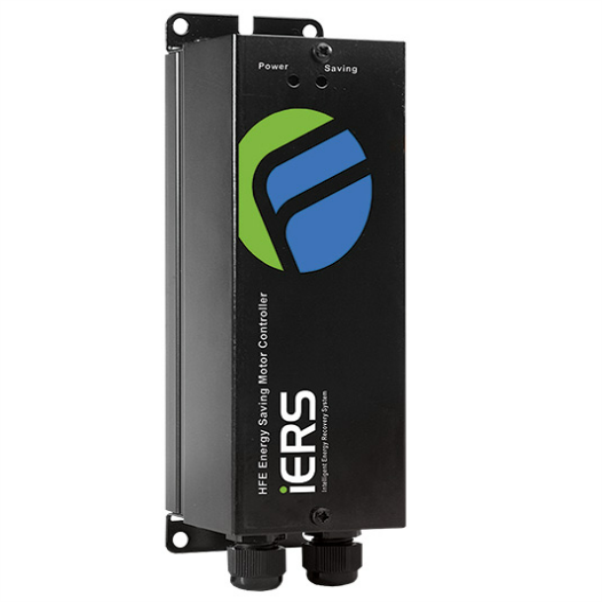

Motortronics HFE Soft Starter, 30 Load Amps, 90A Current
SKU: HFE-2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Single-phase energy-optimizing soft starter:
The HFE is a retrofit energy optimization solution for soft-starting single-phase compressors and motors frequently encountered in supermarket refrigerators and chillers. It can result in energy savings of 10–32%.
The HFE has a tough tin lid and may be conveniently mounted next to the machine or control panel.
The unit's 'two wires in, two wires out' architecture allows for easy installation.
The unit is 'fit and forget' and requires no maintenance from the user.
Buy currently uses Select Automation shop pricing and checkout.
Key features:
Retrofit, quick-fit, and simple wiring:
Two-wire in/out implementation is quick and simple, resulting in minimal installation costs for existing equipment and a quick return on investment through lower energy and maintenance costs.
LED Indication:
Two LEDs indicate power and preserve energy.
Energy optimisation:
Reduces necessary energy consumption while the motor is not under load, resulting in a -10–32% savings in energy, related costs, and carbon emissions.
Torque reduction:
Compressors and motors operate longer and require less maintenance when mechanical and electrical stresses are reduced or eliminated.
"Fit and Forget":
There is no maintenance time or associated expense.
Technical Specifications:
Operational Voltage (Ue): 110–230 VAC (-15% to +10%) in a single phase.
Frequency: 50/60 Hz +/- 2 Hz.
Operational Current (Ie): HFE 2-30A.
Ingress protection: IP30 with basic cover.
Start Time: approximately 0.5 to 5 seconds, continually changeable.
Pedestal voltage is fixed at approximately 15%.
Ambient temperature range: 0°C to 40°C without de-rating.
Design standards: IEC 60947-4-2 and EN 60947-4-2, "AC Semiconductor Motor Controllers and Starters."
Ideal applications:
Refrigeration systems.
Conveyers.
Oven fans.
Chillers.
Coolers.
Air conditioners.
