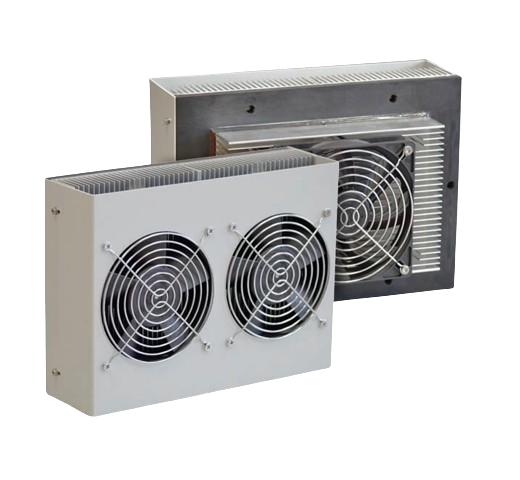

HL Series Switch Cabinet Coolers Size 2, 100 W
SKU: HL-208-C
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
HL Series Switch Cabinet Cooler:
Even at operation temperatures as high as 90 degrees Celsius (194 degrees Fahrenheit), the new high temperature cabinet cooler series HL efficiently cools!
Within a working temperature range of -40 degrees Celsius (-40 degrees Fahrenheit) to +90 degrees Celsius (194 degrees Fahrenheit), three models with three distinct sizes and powers of 50 W, 100 W, and 200 W accomplish difficult cooling duties.
Despite a high ambient temperature, the protection level IP67 ensures the best possible protection from the outside.
The cabinet coolers match our standard series in pin compatibility and dimensions.
Buy currently uses Select Automation shop pricing and checkout.
Switch Cabinet Cooler:
Supply voltage: 24 V - DC
Rated input: 100 W
Cooling power (L35 / L35): 106 W
Max. input current: 7 A
Rated current: 4,2 A
Weight: app. 5 kg
Protection classification outer side (warm): IP67
Protection classification internal side (cold): IP20
Operational temperature range: -40 °C to 70 °C
Storage temperature range: -40 °C to 70 °C
Alarm transductor: NO-contact, max. 30 V-DC, 5 A
Switch point fault message: +80°C (+/- 5°C) heat sink temperature
Switch point safety shutdown: +90°C (+/- 5°C) heat sink temperature
