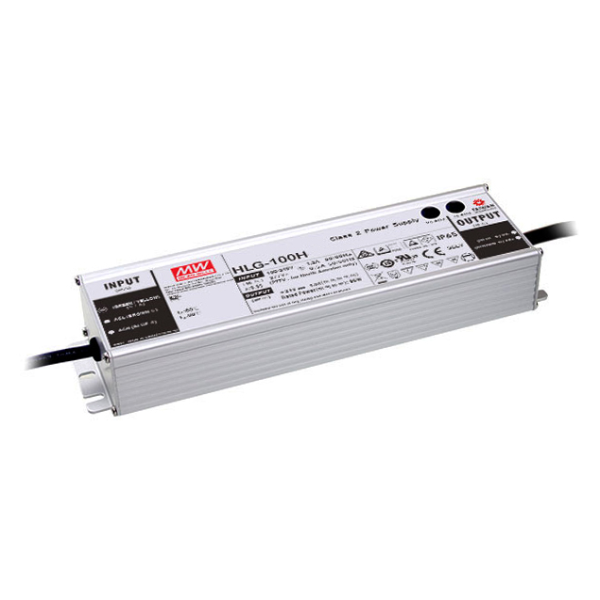

Constant Voltage and Current LED Driver 100W 24V DC
SKU: HLG-100H-24
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
High-performance 100W LED drivers like the Mean Well HLG-100H-24 are built for applications requiring both constant voltage and constant current.
High efficiency and steady performance are guaranteed by its integrated active PFC (Power Factor Correction) function and universal AC input range.
With an IP67/IP65 rating and a sturdy metal enclosure, the HLG-100H-24 may be installed both indoors and outdoors.
With its many protective mechanisms and dependable and constant power output, this LED driver is perfect for a wide range of lighting applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Voltage: 24V DC.
Output Current: 4A.
Rated Power: 96W.
Input Voltage Range: 90 ~ 305VAC / 127 ~ 431VDC.
Frequency Range: 47 ~ 63Hz.
Efficiency: Up to 93%.
Power Factor: 0.99 at 115VAC / 0.96 at 230VAC.
Dimensions: 196mm (L) x 68mm (W) x 38.8mm (H).
Weight: 0.68Kg.
Protections: Short circuit, over current, over voltage, over temperature.
Operating Temperature: -40°C to +80°C (case temperature).
Cooling: Free air convection.
IP Rating: IP67 / IP65.
Compliance: UL8750, EN61347-1, EN61347-2-13, EN55015, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11.
