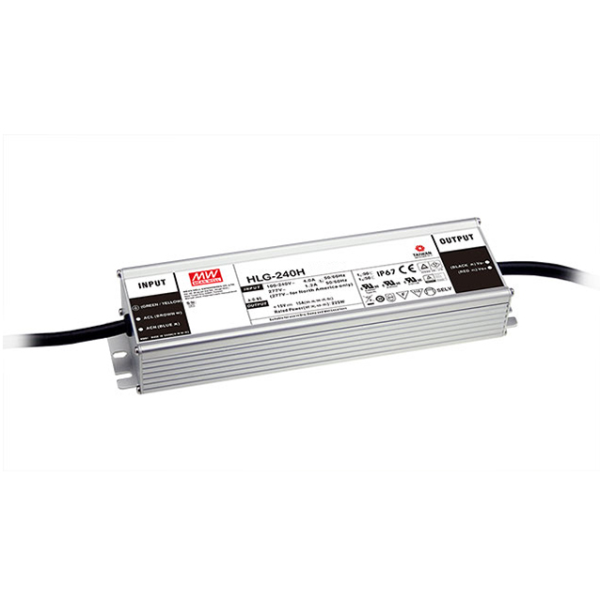

Constant Voltage And Current LED Driver 240W 24V DC
SKU: HLG-240H-24
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A flexible 240W LED driver, the Mean Well HLG-240H-24 is ideal for applications requiring both constant voltage and constant current.
Its built-in active PFC (Power Factor Correction) function and universal AC input range guarantee dependable and highly efficient operation.
With an IP67/IP65 rating and a sturdy metal casing, the HLG-240H-24 is appropriate for a variety of indoor and outdoor lighting applications.
With its numerous safety features and steady, effective power delivery, this LED driver is perfect for use in LED lights and moving signs.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Voltage: 24V DC.
Output Current: 10A.
Rated Power: 240W.
Input Voltage Range: 90 ~ 305VAC / 127 ~ 431VDC.
Frequency Range: 47 ~ 63Hz.
Efficiency: Up to 93.5%.
Power Factor: 0.99 at 115VAC / 0.96 at 230VAC.
Dimensions: 244.2mm (L) x 68mm (W) x 38.8mm (H).
Weight: 1.1Kg.
Protections: Short circuit, over current, over voltage, over temperature.
Operating Temperature: -40°C to +90°C (case temperature).
Cooling: Free air convection.
IP Rating: IP67 / IP65.
Compliance: UL8750, EN61347-1, EN61347-2-13, EN55015, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11.
