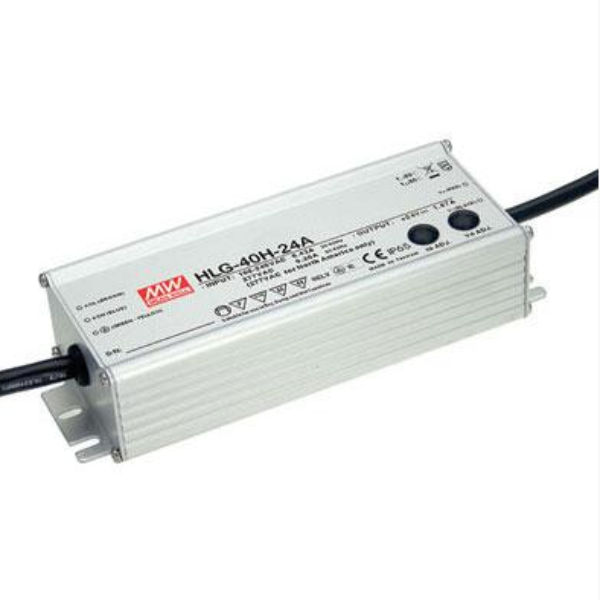

40W Constant Voltage LED Driver 24V DC
SKU: HLG-40H-24
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A dependable and adaptable 40W LED driver, the Mean Well HLG-40H-24 is ideal for applications requiring both constant voltage and constant current.
High efficiency and steady performance are guaranteed by its integrated active PFC (Power Factor Correction) function and universal AC input range.
With an IP67/IP65 rating and a sturdy metal shell, the HLG-40H-24 may be installed both indoors and outdoors.
For LED lighting and other industrial applications where dependability and durability are essential, this power supply is perfect.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Voltage: 24V DC.
Output Current: 1.67A.
Rated Power: 40.08W.
Input Voltage Range: 90 ~ 305VAC / 127 ~ 431VDC.
Frequency Range: 47 ~ 63Hz.
Efficiency: Up to 89%.
Power Factor: 0.99 at 115VAC / 0.96 at 230VAC.
Dimensions: 171mm (L) x 63mm (W) x 37.5mm (H).
Weight: 0.68Kg.
Protections: Short circuit, over current, over voltage, over temperature.
Operating Temperature: -40°C to +70°C.
Cooling: Free air convection.
IP Rating: IP67 / IP65.
Compliance: UL8750, EN61347-1, EN61347-2-13, EN55015, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11.
