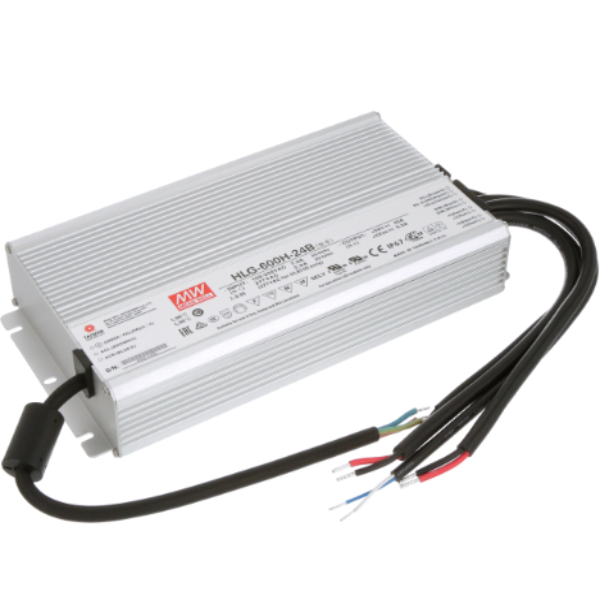

Constant Voltage And Current LED Driver 600W 24V DC
SKU: HLG-600H-24B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
High-performance 600W LED drivers like the Mean Well HLG-600H-24B are built for applications requiring both constant voltage and constant current.
Its built-in active PFC (Power Factor Correction) function and universal AC input range guarantee dependable and highly efficient operation.
With its sturdy metal casing and IP67 rating, the HLG-600H-24B is appropriate for a variety of indoor and outdoor lighting applications.
With its numerous safety features and reliable and effective power delivery, this LED driver is perfect for use in LED lighting systems.
Furthermore, it offers flexibility for a range of lighting requirements by supporting many dimming functions, such as resistance dimming, PWM, and 1-10V dimming.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Voltage: 24V DC.
Output Current: 25A.
Rated Power: 600W.
Input Voltage Range: 90 ~ 305VAC / 127 ~ 431VDC.
Frequency Range: 47 ~ 63Hz.
Efficiency: Up to 96%.
Power Factor: 0.99 at 115VAC / 0.96 at 230VAC.
Dimensions: 280mm (L) x 144mm (W) x 48.5mm (H).
Weight: 2.4Kg.
Protections: Short circuit, over current, over voltage, over temperature.
Operating Temperature: -40°C to +90°C (case temperature).
Cooling: Free air convection.
IP Rating: IP67.
Dimming Functions: 1-10V, PWM, resistance.
Compliance: UL8750, EN61347-1, EN61347-2-13, EN55015, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11.
