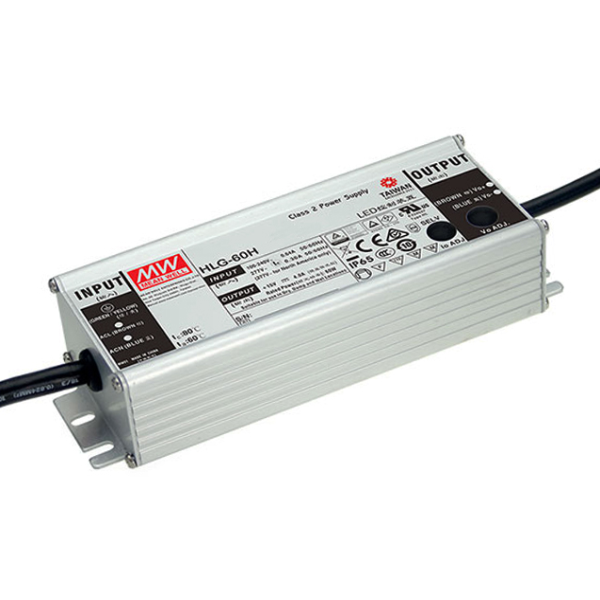

Constant Current And Voltage LED Driver 60W 24V DC
SKU: HLG-60H-24
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
High-efficiency 60W LED drivers like the Mean Well HLG-60H-24 are developed for applications requiring both constant voltage and constant current.
Its built-in active PFC (Power Factor Correction) function and universal AC input range guarantee peak performance and energy economy.
Because of its sturdy metal housing and IP67/IP65 rating, the HLG-60H-24 can be installed both indoors and outdoors.
With its many protective mechanisms and dependable and constant power output, this LED driver is perfect for a wide range of lighting applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Voltage: 24V DC.
Output Current: 2.5A.
Rated Power: 60W.
Input Voltage Range: 90 ~ 305VAC / 127 ~ 431VDC.
Frequency Range: 47 ~ 63Hz.
Efficiency: Up to 90.5%.
Power Factor: 0.99 at 115VAC / 0.96 at 230VAC.
Dimensions: 171mm (L) x 63mm (W) x 37.5mm (H).
Weight: 0.68Kg.
Protections: Short circuit, over current, over voltage, over temperature.
Operating Temperature: -40°C to +80°C (case temperature).
Cooling: Free air convection.
IP Rating: IP67 / IP65.
Compliance: UL8750, EN61347-1, EN61347-2-13, EN55015, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11.
