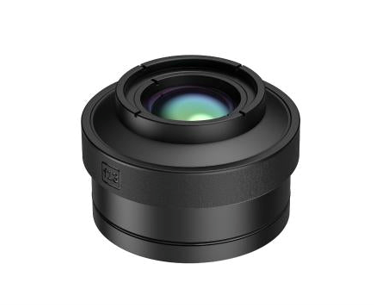

HIKMICRO Thermal Cameras, HM-SP605-LENS, Interchangeable Lens
SKU: HM-SP605-LENS
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• SP Series 0.5x, Wide Angle Lens for SP60 & SP60H
• Focal Length 12.6 mm (0.04 ft)
• FOV (Field of View) SP40/SP40H: 37.3° (H) × 27.8° (V) SP60/SP60H: 50° (H) × 37.3° (V)
• IFOV (Spatial Resolution) 1.35 mrad
• Aperture F1.0
• Min. Focusing Distance 0.2 m (0.65 ft)
• Working Temperature Range -20°C to 50°C (-4°F to 122°F)
• Weight 195 g (0.43 lb)
• Dimension 44.9 mm × φ61.7 mm (1.77'' × φ2.43'')
Buy currently uses Select Automation shop pricing and checkout.
HM-SP605-LENS
• The interchangeable lens series is often used with handheld thermal cameras to expand the focal length of the original camera to different ranges, so as to obtain different FOVs and scene scopes.
• Compatible with SP40, SP40H, SP60, SP60H, SP60H-L12, SP60H-L25, SP60H-L50, SP60H-L8, SP60-L12, SP60-L12/50, SP60-L25, SP60-L50, SP60-L8, and SP60-L8/25.
