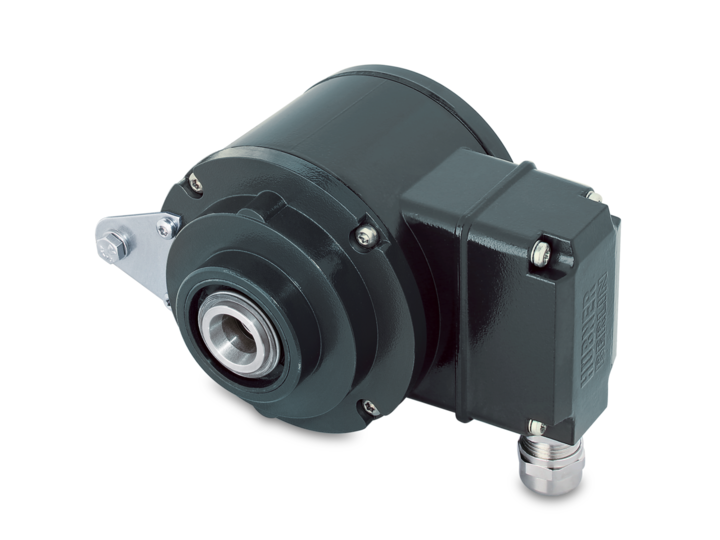

HOG10-DN-1024-ISR-16H7-KLK Industrial Duty Incremental Encoders
SKU: HOG10-DN-1024-ISR-16H7-KLK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Blind hollow shaft, 1024 pulses per revolution:
HTL output driver for cables up to 350 meters in length.
Very strong vibration and shock resistance.
For a longer service life, use a hybrid double-side bearing.
Sealing mechanism for moist, greasy environments.
Turn this large terminal box 180 degrees.
Buy currently uses Select Automation shop pricing and checkout.
Electrical ratings:
Voltage supply: 9...30 VDC.
Consumption w/o load: ≤100 mA.
Pulses per revolution: 1024.
Phase shift: 90 ° ±20°.
Duty cycle: 40…60 %.
Reference signal: Zero pulse, width 90°.
Sensing method: Optical.
Output frequency: ≤120 kHz.
Output signals: K1, K2, K0 + inverted.
Output stages: HTL-P (power line driver).
Shaft insulation: Suitable up to 2.8 Kv.
Transmission length: ≤350 m at 100 kHz (HTL-P).
Interference immunity: EN 61000-6-2.
Emitted interference: EN 61000-6-3.
Approval: CE, UL approval / E217823.
Mechanical design:
Size (flange): ø105 mm.
Shaft type: ø16 mm (blind hollow shaft).
Admitted shaft load: ≤450 N axial, ≤600 N radial.
Protection EN 60529: IP 66.
Operating speed: ≤6000 rpm (mechanical).
Operating torque typ.: 6 Ncm.
Rotor moment of inertial: 340 gcm².
Material: Housing: aluminium diecast, Shaft: stainless steel.
Operating temperature: -40...+100 °C.
Resistance, IEC 60068-2-6, Vibration 20 g, 10-2000 Hz, IEC 60068-2-27, Shock 300 g, 6 ms.
Corrosion protection: IEC 60068-2-52 Salt mist, for ambient conditions CX (C5-M) according to ISO 12944-2.
Connection: Terminal box.
Weight approx.: 1.6 kg.
