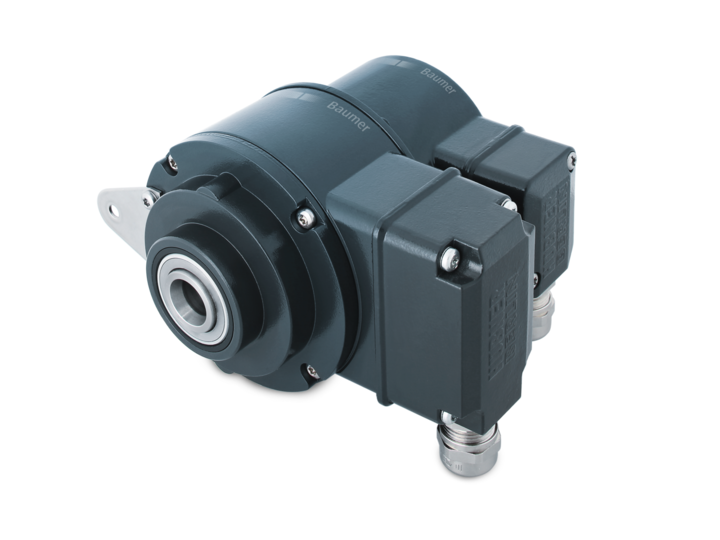

Incremental encoders - combination, 2048 pulses per revolution
SKU: HOG10-DN-2048-ILR-16H7+FSL2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Encoder with integrated centrifugal switch:
blind hollow shaft, 2048 pulses per revolution
HTL output driver for cables up to 350 meters in length.
Centrifugal force-based mechanical speed monitoring system.
For a longer service life, use a hybrid double-side bearing.
Turn the terminal boxes 180 degrees.
High resilience to vibrations and shocks.
System of seals for dusty environments.
Buy currently uses Select Automation shop pricing and checkout.
Electrical ratings (encoder):
Voltage supply: 9...30 VDC.
Consumption w/o load: ≤100 mA.
Pulses per revolution: 2048.
Phase shift: 90 ° ±20°.
Duty cycle: 40…60 %.
Reference signal: Zero pulse, width 90°.
Output frequency: ≤120 kHz.
Output signals: K1, K2, K0 + inverted.
Output stages: HTL-P (power line driver).
Sensing method: Optical.
Electrical ratings (centrifugal switch):
Switching accuracy: ± 4 % (Δn = 2 rpm/s); 20 % (Δn = 1500 rpm/s).
Switching deviation: ≤3 % (cw-ccw rotation).
Switching hysteresis: 40 % of switching speed.
Switching outputs: 1 output, speed control.
Output switching capacity: ≤6 A / 230 VAC; ≤1 A / 125 VDC, (EAC: <50 VAC / 75 VDC).
Minimum switching current: 50 mA.
Mechanical design:
Size (flange): ø105 mm.
Shaft type: ø16 mm (blind hollow shaft).
Admitted shaft load: ≤450 N axial, ≤600 N radial.
Protection EN 60529: IP 66.
Range of switching speed (ns): 1800...2499 rpm (Δn = 2 rpm/s).
Operating torque typ.: 6 Ncm.
Rotor moment of inertia: 400 gcm².
Material: Housing: aluminium diecast, Shaft: stainless steel.
Operating temperature: -40...+100 °C.
Resistance: IEC 60068-2-6, Vibration 5 g, 10-2000 Hz, IEC 60068-2-27, Shock 50 g, 11 ms.
Corrosion protection: IEC 60068-2-52 Salt mist, for ambient conditions CX (C5-M) according to ISO 12944-2.
Connection: 2x terminal box.
Weight approx.: 2.2 kg.
