PANEL HEATER 100W 110-250VAC
SKU: HTM100
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

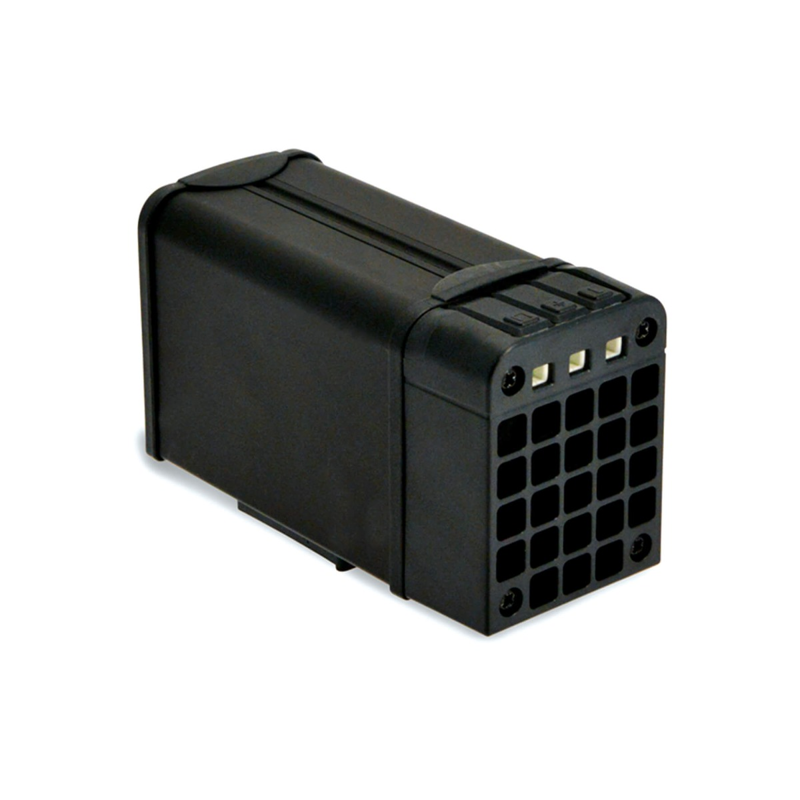

Electrical cabinets are intended to have their temperature regulated by the PANEL HEATER HTM100.
It has a self-extinguishing PTC element contained in a DIN rail mountable black anodized aluminium housing.
This heater is perfect for keeping electrical enclosures at the right temperature and preventing dampness.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Series: HTM series.
Supply Voltage: 110 - 250V AC.
Heating Power: 100 W.
Current: 475 mA.
Mounting: DIN rail mounting.
Dimensions:
Height: 188 mm.
Width: 62 mm.
Depth: 85 mm.
Connection Type: Screw terminal connection.
Compliance:
IEC/EN 60335-1.
IEC 60004-1.
Features:
Compact size.
Safe to touch.
PTC resistance that regulates itself.
In opposition to condensation.
This heater creates a stable internal environment, which is ideal for guaranteeing the dependability and lifespan of your electrical equipment.
