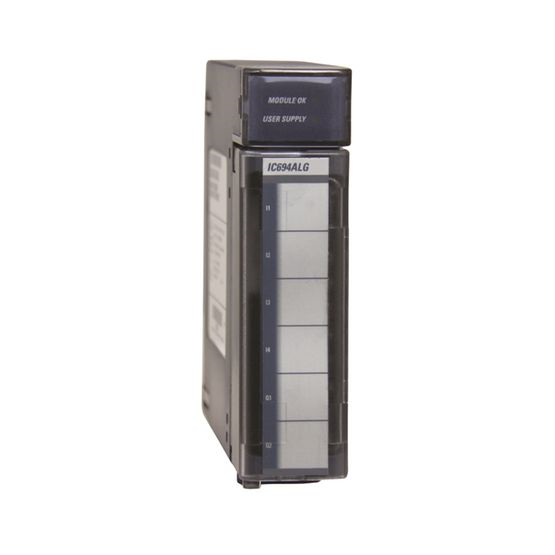

PACSystems™ RX3i Analog Input module, voltage, 4 channel

Specifications: Lifecycle Status: Active Module Type: Analog Input Backplane Support: No Backplane Restrictions Number of Slots Module Occupies on Backplane: 1 Range: -10 V to +10 V HART Support: N/A Channel-to-Channel Isolation: N/A Update Rate: 4 ms for all channels Resolution: 12 bit; 5 mV/20 μA/bit Accuracy: ±10 mV/40μA at 25ºC (77ºF) Input Impedance: >9 Megohms Input Filter Response: 17 Hz Notch Filter: N/A Diagnostics: N/A Internal Power Used: 27 mA @ 5 VDC; 98 mA @ 24 VDC Isolated External Power Requirement: N/A Connector Type: Terminal Block (20 screws), included with module
