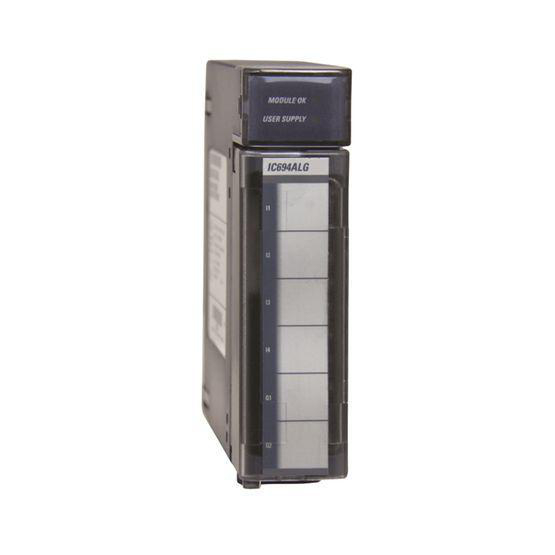

PACSystems™ RX3i Analog Input module

Specifications: Lifecycle Status: Active Module Type: Analog Input Backplane Support: No Backplane Restrictions Number of Slots Module Occupies on Backplane: 1 Range: 4-20 mA, 0-20 mA HART Support: N/A Channel-to-Channel Isolation: 4 Update Rate: 2 ms all channels Resolution: 12 bit; 0-20 mA, 5 μA/bit; 4-20 mA, 4 μA/bit Accuracy: 0 1 % full scale Input Impedance: 250 ohms Input Filter Response: 325 Hz Notch Filter: N/A Diagnostics: N/A Internal Power Used: 25 mA @ 5 VDC; 100 mA @ 24 VDC Isolated External Power Requirement: N/A Connector Type: Terminal Block (20 screws), included with module
