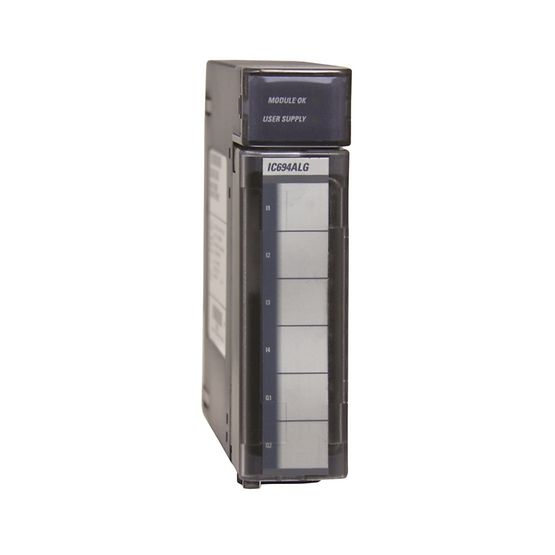

PACSystems™ RX3i Analog Combination module, current/voltage, 4 inputs 2 outputs
SKU: IC694ALG442
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Product Description:
RX3i IO is designed for mission critical discrete and process applications.
The rack-based IO offers advanced diagnostics and outstanding flexibility, with a wide range of standard and advanced IO.
High-speed and patented technology for faster throughput.
Hot swap capability.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Part Number: IC694ALG442
Analog Combination Count Type: 4 Input & 2 Output; 0 V to +10 V, -10 V to +10 V, 0-20 mA, 4-20 mA per Channel
Resolution Speed: 12 Bit; 2mS
Current Consumption: 95 mA @ 5 VDC; 150 mA external 24 VDC Isolated
Agency: UL, UL HAZLOC
Approvals: Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR
Mounting Format: On Panel/DIN Rail
