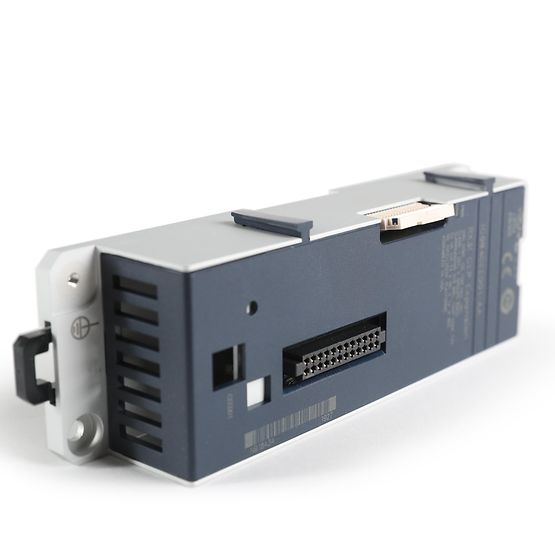

RX3i CEE001 Expansion Carrier
SKU: IC694CEE001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description of the Product:
Mission-critical discrete and process applications are the focus of RX3i IO's design.
With a large selection of both conventional and sophisticated IO, the rack-based IO provides exceptional flexibility along with excellent diagnostics.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Part Number: IC694CEE001.
Network Adapter / Use: Connects to IC694CEP001.
Purpose: Adds an expansion slot.
Limit: One (1) Expansion slot for a total of 2 Slots.
PNS Status and Control bit: 32 input status bits and 32 output control bits.
Features:
Scanning every module in the distant node (including input and output scans).
Data publication to a PROFINE IO-Controller over the PROFINET network at a user-specified production period.
Obtaining data at a customer-specified production period from a PROFINET IO-Controller on the PROFINET network.
Controlling PROFINET connection and module configuration between modules in the distant node and a PROFINET IO-Controller.
Keeping an eye on the I/O state in the event of a communication failure and sending fault data, such as diagnostics and alerts, to the PROFINET IO-Controller.
Complete Proficy Machine Edition programming and setup services for all supported RX3i IO Modules.
Support network topologies such as daisy-chain/line, star, or ring (redundant media).
Two Ethernet ports that are switched: Two RJ-45 protected twisted pair 10/100 Mbps copper connections with eight conductors each.
A USB port for WinLoader firmware updates in the field.
