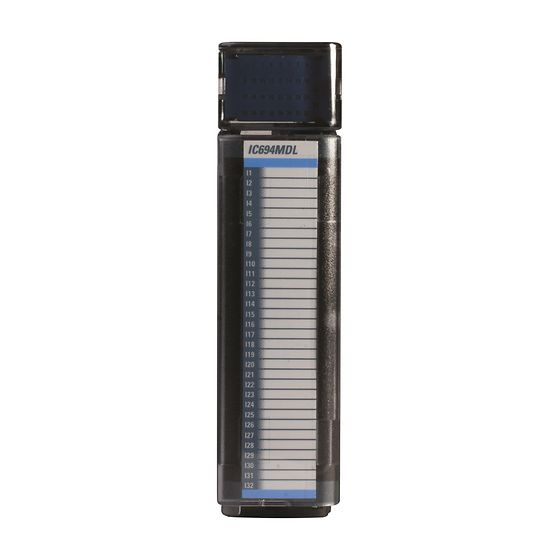

PACSystems™ RX3i AC Voltage Input module, 240V, 8 point
SKU: IC694MDL231
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Product Description:
RX3i IO is designed for mission critical discrete and process applications.
The rack-based IO offers advanced diagnostics and outstanding flexibility, with a wide range of standard and advanced IO.
High-speed and patented technology for faster throughput.
Hot swap capability.
A variety of voltage ranges, types, current capacity, isolation and response time to meet your application needs.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Part Number: IC694MDL231.
Input Count, Type Speed: 8 Point, Positive Logic; Isolated; 30mS on/45mS Off.
Supply Voltage and on/Off Voltage: 240VAC; Range 200~264VAC; On 148.
Current Consumption: 60mA @ 5VDC.
Approvals Standards Ordinary Locations: UL 508, equivalent to CSA C22.2 No 142M1987 standard.
Approvals Standards Hazardous Locations: Class I, Div. 2, Groups A, B, C, D.
Mounting Format: On Panel/DIN Rail.
