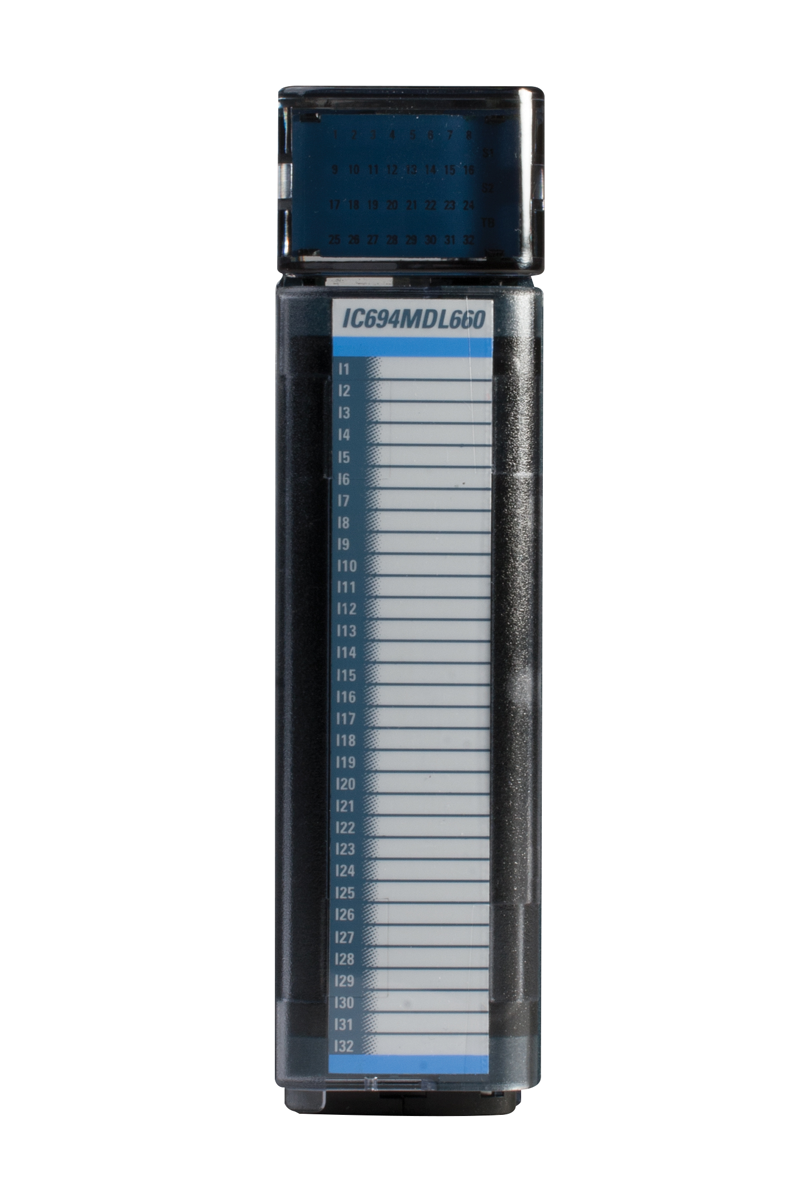

PACSystems™ RX3i DC Voltage Input module, 24V, 32 point, with selectable response time (CA)
SKU: IC694MDL660CA
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The interface between the PLC and external input devices, like switches, push buttons, BCD thumbwheels, and proximity sensors, is provided by input modules.
The interface that connects the PLC to external output devices such contactors, interposing relays, and BCD displays is provided by the output modules.
As well as indicator lamps To fulfill your application needs, GE offers a choice of modules that support various voltage ranges and kinds, current capacity, isolation, and reaction time.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Lifecycle Status: Active
Module Type: Discrete Input
Backplane Support: No Backplane Restrictions
Number of Slots Module Occupies on Backplane: 1
Input Voltage Range: 0-30 VDC
Input Current (mA): 7
Number of Points: 32
Response Time (ms): 0.5ms, 1.0ms, 2.0ms, 5ms, 10ms, 50ms and 100ms, selectable per module On and off.
Trigger Voltage: 11.5-30
Points per Common: 8
Diagnostic Supported: N/A
Connector Type: C694TBBx32 or IC694TBSx32. Sold Separately
Internal Power Used: 300 mA @ 5 VDC
