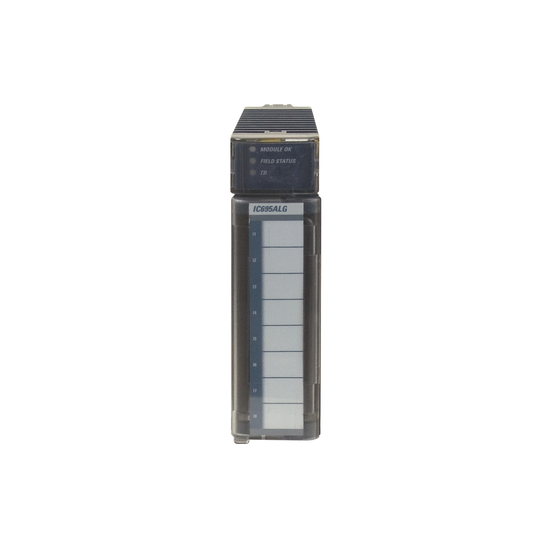

PACSystems™ RX3i Isolated Analog Input module, 12 channel

Specifications: Lifecycle Status: Active Module Type: Analog Input with Channel-to-Channel Isolation Backplane Support: Universal Backplane Only Uses PCI Bus Number of Slots Module Occupies on Backplane: 1 Range: Current: 0 to 20 mA, 4 to 20 mA, ±20 mA; Voltage: ±10 V, 0 to 10 V, ±5 V, 0 to 5 V, 1 to 5 V HART Support: N/A Channel-to-Channel Isolation: Yes (250 VAC continuous, 1500 VAC for 1 minute per channel) Number of Channels: 12 Update Rate: 1 ms for all channels Resolution: 32-bit IEEE floating point or 16-bit integer (in 32-bit field) input data format Accuracy: ±0 1% of span at 25ºC, ± 25% of span over operating temperature range Input Impedance: Current = 250 ohms ±1%, Voltage >= 500k Ohms Input Filter Response: Configurable: 8Hz, 12Hz, 16Hz, 40Hz, 250Hz, and 1000Hz Notch Filter: N/A Diagnostics: Open wire, under range, over range, positive/negative rate of change,High, High-High, Low, Low-Low. Internal Power Used: 800 mA @ 5 V; 600 mA @ 3 3 V External Power Requirement: 19 2 V to 30 VDC, Current required: 500 Ma Connector Type: IC694TBBx32 or IC694TBSx32. Sold Separately
