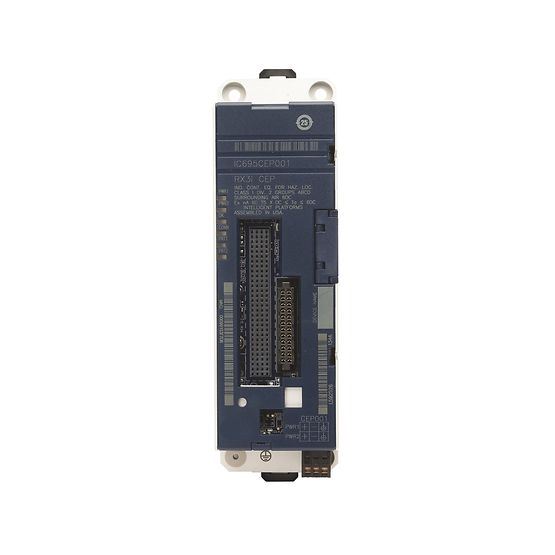

PACSystems™ RX3i CEP001 Carrier
SKU: IC695CEP001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description of the Product:
Mission-critical discrete and process applications are the focus of RX3i IO's design.
With a large selection of both conventional and sophisticated IO, the rack-based IO provides exceptional flexibility along with excellent diagnostics.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Part Number: IC695CEP001
Network Adapter / Use: PROFINET Version 2.3 Class A IO-Device
Ethernet port connectors: Two RJ-45 10/100Base-TX receptacles
USB: 1x micro-USB
PNS Status and Control bit: 32 input status bits and 32 output control bits
Features:
Scanning every module in the distant node (including input and output scans).
Data publication to a PROFINE IO-Controller over the PROFINET network at a user-specified production period.
Obtaining data at a customer-specified production period from a PROFINET IO-Controller on the PROFINET network.
Controlling PROFINET connection and module configuration between modules in the distant node and a PROFINET IO-Controller.
Controlling the I/O status when there is a loss of communication.
Sending error data, such as alarms and diagnostics, to the PROFINET IO-Controller.
Complete Proficy Machine Edition programming and setup services for all supported RX3i IO Modules.
Support network topologies such as daisy-chain/line, star, or ring (redundant media).
Two switched Ethernet ports: two RJ-45 shielded twisted pair 10/100 Mbps copper connections with eight conductors each.
