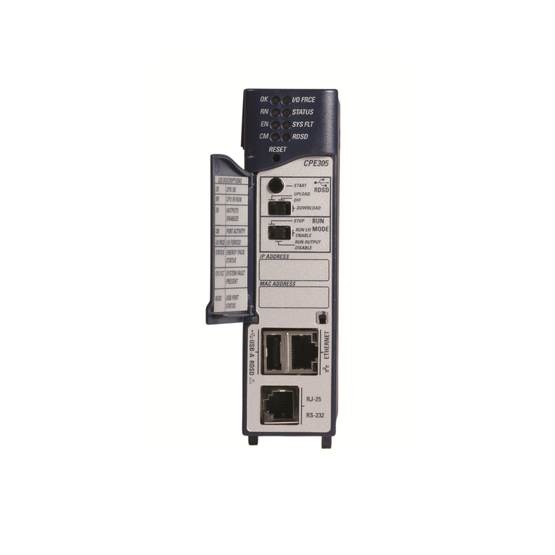

PACSystems™ RX3i CPE305 Controller

Specifications: Part Number: IC695CPE305 Form Factor: Backplane User Memory: 6MB I/O: 32k Bits Discrete I/O, 32k Words for Analog I/O Energy Pack: Included Redundancy Support: Media Redundancy (MRP) with PNC001 Ethernet Port: 2 - 2 port switch 10/100/1000 Ethernet Protocols: SRTP Client/Server, Modbus TCP/IP, OPC UA, EGD, PROFINET, DNP3 Outstation, IEC-61850 Client, IEC-104 Server, HART passthrough Serial Protocols: ASCII Serial, Modbus/RTU Remote I/O Devices: 255 Simplex with PNC001 USB Interface: 1x USB-A 2.0 Environmental: 0 to 60C Agency Approvals: UKCA, UL, cUL, RoHS, CCC, FCC, Reach, UL HazLoc C1D2, ATEX Zone 2 Marine Certifications: ABS, BV, LR. DNV GL Features: Programming tools for better online troubleshooting, including tag-based programming, a library of reusable code, and a test edit mode. An environment that is easy to use and can boost engineering productivity and design flexibility The quick plug-and-play installation of PROFINET-capable equipment facilitates safe machine, data, and human connections. A multicore CPU with high speed to provide faster throughput without information bottlenecks. High-density discrete I/O, motion modules, isolated analog, high-density analog, high-speed counter, and universal analog (TC, RTD, Strain Gauge, Voltage and Current adjustable per channel) are all supported.
