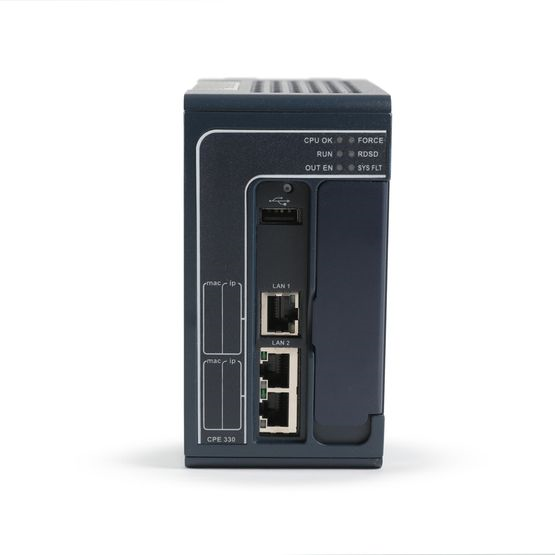

PACSystems™ PACSystems™ RX3i CPE330 Controller

Features: Tag-based programming, a library of reusable code, and a test edit mode are all available to help with online troubleshooting. A user-friendly environment can boost design flexibility while also improving engineering efficiency and productivity. The plug-and-play capability of PROFINET-enabled devices makes it simple to securely link machines, data, and individuals. High-speed multicore processors allow for increased throughput without information bottlenecks. There is support for high-density discrete I/O, universal analogue (TC, RTD, Strain Gauge, Voltage and Current programmable per channel), isolated analogue, high-density analogue, high-speed counter, and motion modules. Specifications: Form Factor: Backplane. User Memory: 64MB. I/O: 32k Bits Discrete I/O, 32k Words for Analog I/O. Energy Pack: Available. Redundancy Support: Media Redundancy (MRP), PROFINET System Redundancy (PNSR). Ethernet Port: 3x 10/100/1000 (2 switched ports). Ethernet Protocols: SRTP Client/Server, Modbus TCP/IP, OPC UA (Non-Transparent Server Redundancy Server), EGD, PROFINET, DNP3 Outstation, IEC-61850 Client, IEC-104 Server, HART passthrough. Serial Protocols: ASCII Serial, Modbus/RTU. Remote I/O Devices: 32 Simplex, 20 Redundant, 255 Simplex with PNC001. USB Interface: 1x USB-A 2.0. Memory Card: 1x CFast. Environmental: 0 to 60C. Agency Approvals: UKCA, UL, cUL, RoHS, CCC, FCC, Reach, UL HazLoc C1D2, ATEX Zone 2. Marine Certifications: ABS, BV, LR. DNV GL.
