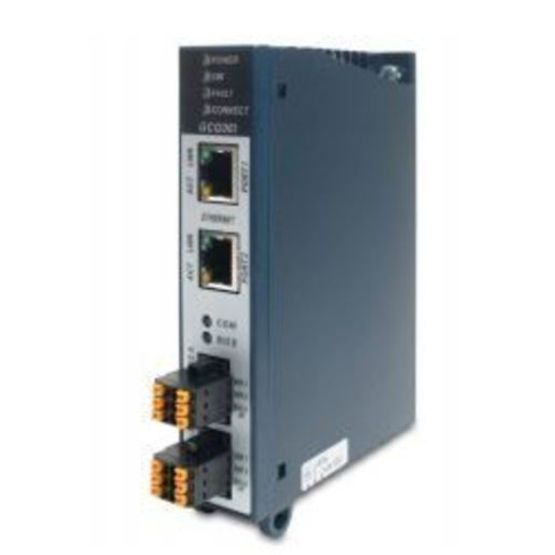

PACSystems™ RX3i Genius Communications Gateway

Specifications: Part Number: IC695GCG001 PROFINET Support: PROFINET version 2.3 Class A IO-Device CPU Compatibility: RX3i CPE330, RX3i CPE302/CPE305/CPE310 with firmware version 8.15 or later, RX3i CPU315/CPU320/CRU320 with firmware version 8.15 or later, RX3i CPE302 (any firmware version) PNC001 Compatibility: Firmware version 2.05 or later Embedded PROFINET Compatibility: RX3i CPE400 embedded PROFINET, RX3i CPE330 embedded PROFINET with firmware version 8.90 or later PAC Machine Edition Compatibility: PME 8.0 or later Power Requirements: External 24Vdc Operating Temperature Range: 0 to 60C Number of Port Connectors: 2x RJ-45 Local Area Network (LAN): IEEE 802.2 Logical Link Control Class I, IEEE 802.3 CSMA/CD Medium Access Control 10/100 Mbps Status Data: 64 (two banks of 32 bits) Genius Bus Support: Supports One Genius Bus and up to 29 additional devices supported per Genius Bus Redundancy Support: Genius Hot Standby and Duplex Redundancy Supported HHM Compatibility: IC660HHM501 Features: Patented technology with high speed for increased throughput. Ability to hot switch. A range of voltage levels and current capabilities to satisfy your application requirements. Two RJ-45 Ethernet connections (Ports 1 and 2) are attached. Support for network topologies that are both linear (daisy-chained) and star (switched). Encourages Media Redundancy Protocol (MRP) for Ethernet. LEDs to show the ACT and LINK condition of the Ethernet. Genius bus terminal block attachment, which consists of a single Genius bus with two GCG001 Gateways LED status indicators, supports Genius Redundancy. Slot for Secure Digital (SD) Cards. Loop for tying down cables on the module's underside.
