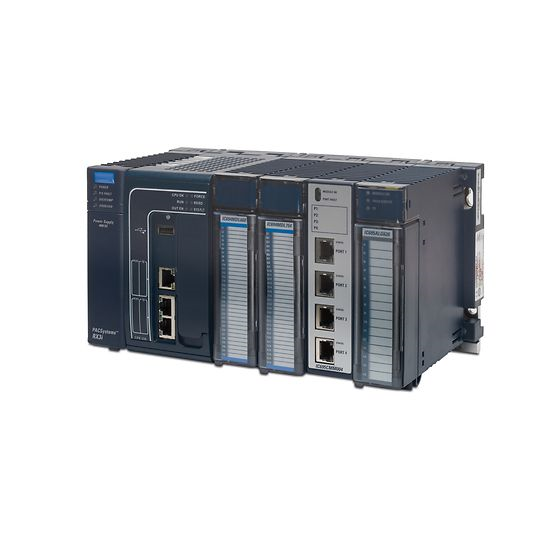

PACSystems™ RX3i Smart Digital Input module
SKU: IC695MDL664
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Mission-critical discrete and process applications are the focus of RX3i IO's design.
With a large selection of both conventional and sophisticated IO, the rack-based IO provides exceptional flexibility along with excellent diagnostics.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Part Number: IC695MDL664
Input Count, Type & Speed16 Point; Advanced Diagnostic; Positive Logic; 0.5-100mS selectable on/Off
Supply Voltage and on/Off Voltage24VDC; Range 20~30V; On >0.5xVIN VDC
Current Consumption: 225mA @ 5VDC & 95mA @3.3VDC
Approvals & Standards Ordinary Locations: UL 508, equivalent to CSA C22.2 No 142M1987 standard
Approvals & Standards Hazardous Locations: Class I, Div. 2, Groups A, B, C, D
Mounting Format: On Panel/DIN Rail
Features:
High-speed and patented technology for faster throughput.
Hot swap capability.
A variety of voltage ranges, types, current capacity, isolation and response time to meet your application needs.
