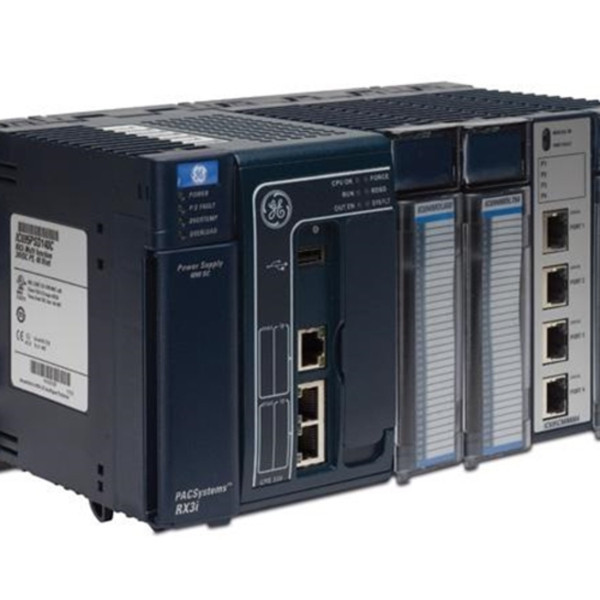

PACSystems™ RX3i Smart Digital Output module Conformal Coated
SKU: IC695MDL765CA
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The IC695MDL765CA module has 16 digital output terminals, each capable of handling up to 1A at 24/125 V DC.
It employs positive logic, which means it directs current to the connected load.
This module includes comprehensive diagnostics to identify open wire, short circuit, and over-temperature problems, assuring dependable operation and easy troubleshooting.
Buy currently uses Select Automation shop pricing and checkout.
Key features:
Voltage Range: 24/125 VDC.
Current capacity: 1 amp per point.
Output points: 16.
Positive logic output.
Isolation: 1500 V RMS between field and logic side.
Response Time: Typically, 1 ms.
Diagnostics: Advanced diagnostics for open wire, short circuit, and overheating issues.
LED Indicators: Each output point includes an LED indicator to check its status.
Hot Swappable: Can be swapped without turning off the system.
Field wiring is simplified by using removable terminal blocks.
Applications:
Industrial Automation: Manages actuators, relays, and other devices in automated systems.
Process Control: Provides dependable and rapid digital output in process control systems.
Building Management Systems: Controls lighting, HVAC, and other building systems.
