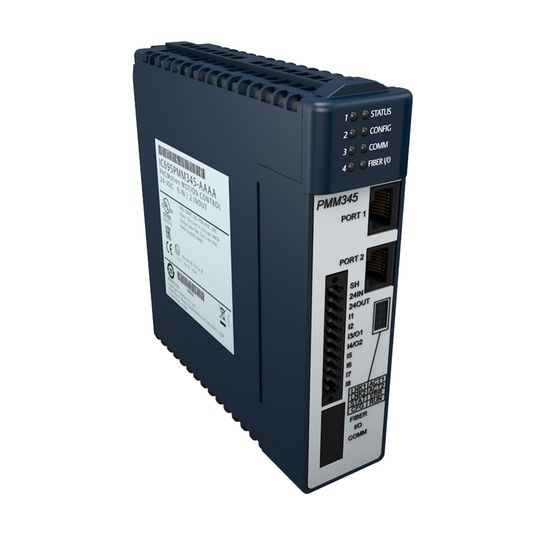

PACMotion RX3i Servo Motion Controller
SKU: IC695PMM345
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Dedicated CPU that enables PACSystems RX3i servo motion control and works with PACMotion Servo Drives to provide integrated, scalable, and precise motion control.
Features:
Based on open EtherCAT communications.
Compatible with every backplane CPU (PACSystems RX3i) model.
motion update rate that is constant throughout all axe counts.
An expandable architecture with up to 50 coordinated axes of control in a single system: 40 physical and 10 virtual.
Available Fiber Terminal Block (FTB) enables distributed motion centric I/O with easy wiring.
Capable of adjusting motion profiles on the fly.
the same footprint as the PMM335's predecessor, making migration simple.
Integrated with PAC Machine Edition Software to provide uniform programming.
Double precision (64-bit) floating-point.
The entire system is synchronized so that all components work together.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Motion Path Planning Update Rate: 1ms.
Position Loop Update Rate: 0.5ms.
Communications Loop Update Rate: 0.25ms.
Controlled Axes / Module: 4.
Master Axes / Module: 1.
Servo Command Interface: EtherCAT.
Maximum Axes per RX3i: 40 + 10 master axes.
Feedback Type: Incremental/Absolute Serial Encoder.
Connector: Plug-on Screw Terminal.
Floating Point Support: Yes.
Cam Profiles per Module: 256 at one time.
Synch/Delayed Start: Up to 8 axes.
High Speed Position Capture: 2 Inputs per axis.
Certifications: ATEX, CE, China Rohs, WEEE.
