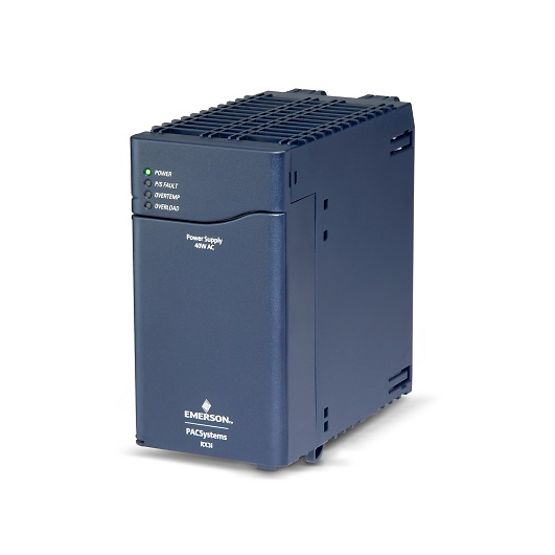

RX3i Power supply 120/240VAC and 125VDC 40 watts occupies two slots on system base.
SKU: IC695PSA040
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
A 40-Watt power supply for use in PACSystems RX3i Universal Backplanes (IC695 series) that operates from an input voltage source in the range of 85 to 264Vac or 100 Vdc to 300 Vdc .
Power supplies designed to support RX3i Backplance Controller Systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Part Number: IC695PSA040
Compatibility: PACSystems RX3i Universal Backplane (IC695 Series), occupies 2 slots
Input Voltage: 120/240 Vac or 125 Vdc Nominal, 85 to 264 Vac or 100 to 300 Vdc
Load Capacity40 W Total, All Loads
Isolation (input to backplane): 250 Vac continuous; 1500 Vac for 1 minute
Wiring: 14 AWG to 22 AWG, 1 wire per terminal
LED Indications: Power, P/S Fault, Overload, Overtemperature
Load Sharing & Redundancy: NO
Environmental: Operate: 0 to 60°C: [inlet] (32 to 140°F), Storage: -40 to +85°C (-40 to 185°F), 5 to 95% humidity, non-condensing
Agency Approvals: UL, CE, ATEX, CCC, Marine (ABS, BV, LR)
Options Selected by Part# Suffix: Conformal Coated: IC695PSA040CA, Low Temperature IC695PSA040LT
