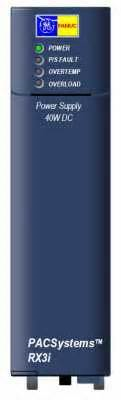

PACSystems™ RX3i PSD Multipurpose Power Supply
SKU: IC695PSD140
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
A multi-purpose 40-Watt power supply for use in PACSystems RX3i Universal Backplanes (IC695 series), ideal for load-sharing and redundancy applications, and operating from an input voltage source ranging from 18Vdc to 30 Vdc.
Features:
Power supply suited for RX3i Backplance Controller Systems.
Specifications:
Compatibility: PACSystems RX3i Universal Backplane (IC695 Series), occupies 1 slots.
Input Voltage: 24 Vdc Nominal, Operates 18Vdc to 30 Vdc.
Load Capacity: 40 W Total, All Loads.
Isolation (input to backplane): None.
Wiring: 14 AWG to 22 AWG, 1 wire per terminal.
LED Indications: Power, P/S Fault, Overload, Overtemperature.
Load Sharing & Redundancy: YES.
Environmental:
Operate: 0 to 60°C: [inlet] (32 to 140°F).
Storage: -40 to +85°C (-40 to 185°F).
5 to 95% humidity, non-condensing.
Agency Approvals (Approvals may be version specific): UL, CE, ATEX, CCC, Marine (ABS, BV, DNVGL).
Options (Selected by Part# Suffix):
Conformal Coated: IC695PSA140CA.
Low Temperature IC695PSA140LT.
Buy currently uses Select Automation shop pricing and checkout.
Mounting Format:
Panel Mount.
Rack Mount.
Network Interfaces:
PROFINET.
Modbus/TCP.
Ethernet Global Data (EGD).
Control Memory Exchange (CMX).
PROFIBUS DP.
Gateways / Bridges:
Serial Communications.
Modbus/RTU.
Modbus/TCP.
HART.
GENIUS.
DNP3 Serial/TCP.
IEC-61850.
IEC-104.
Reflective Memory.
PROFIBUS/Master.
CANOpen.
Network Redundancy:
Media Redundancy Protocol (MRP).
Dual LAN.
System Redundancy:
PROFINET System Redundancy (PNSR).
Ethernet Global Data (EGD).
I/O Redundancy:
Via Application Code.
Media Support:
Copper.
SM Fiber.
MM Fiber.
Media Connector.
2x RJ45 and 2x SFP.
I/O Types:
Digital.
Voltage.
TL.
Relay.
Analog.
Voltage/Current.
RTD.
Thermocouple.
Specialty Modules:
Pulse Test (24, 125 Vdc).
High Speed Counters.
Pulse With Modulation (PWM).
Pulse Output.
Power Sync & Measure.
Strain Gauge.
SoE Inputs (application).
Isolation:
Galvanic Isolation.
DI, DO, AI, AO.
Hot Swap:
Yes.
Environmental:
IP20.
0°C to 60°C.
-40°C to 60°C options.
Conformal coat options.
Agency Approvals:
UL.
UL HazLoc C1D2.
CE.
ATEX Zone 1.
Marine (only select models):
ABS.
BV.
DNV GL.
Channel Density:
2 - 32 points.
Max Wire Gauge:
12 (low density).
14 (high density).
Max I/O per Drop:
448.
