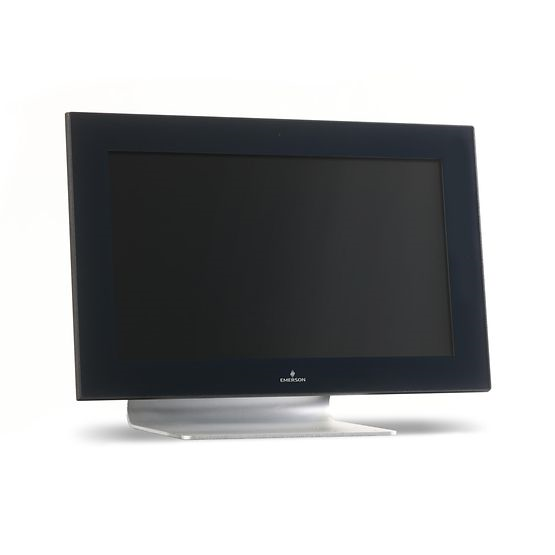

PACSystems™ RXi - Industrial Monitor with 10" screen
SKU: IC756CSW10IM
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The RXi - Industrial Monitor portfolio blends modular design, superior durability, and power in an ultra-slim form ideal for the production floor.
Features:
The modular portfolio includes displays ranging from 7" to 24" in widescreen format, as well as 7" to 15" variants with outdoor Sunlight Readable (SLR) screens.
Operate well in temperatures as high as 65 degrees Celsius and as low as -20 degrees Celsius, both indoors and outdoors.
IP66-rated screens defend against dust, moisture, and even direct water jets.
Connections for Display Port-In and Display Port-Out enable MST Daisy Chaining.
Specifications:
Touch Screen: Projected Capacitive Touch (PCT/PCAP), Multi-touch (10-point).
Status Indicator: Tri-colour LED.
Operating System: None.
Certifications: UL, CE, FCC, RoHS, ATEX, IECEx.
Marine: ABS, BV, DNV GL, LR.
UL Listed US/CAN HazLoc: Class 1 Division 2, Class 2 Division 2, Class 3 Division 1.
Interfaces: HDMI (in), Display Port (in and out), USB (touch input).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display:
Resolution: 1280 x 800 WXGA.
Format: Widescreen (16:10).
Orientation: Landscape.
Reading Angle (°): 170 (H) / 170 (V).
Display Off-Colour: Black.
Contrast: 800:1.
Brightness (cd/m2): 500.
Brightness with Outdoor SLR Screen (cd/m2): 1000.
MTBF Backlighting: 50 000 h (at 25°C).
Touchscreen:
Technology: Projected Capacitive Touch (PCT/PCAP).
Touch Sensor: Multi-touch (Ten-Point.
Interfaces:
Port 1: 1 x HDMI-In.
Port 2: 1 x Display Port-In.
Port 3: 1 x Display Port-Out (MST - Daisy Chain).
Port 4: 1 x USB Input (For Touch).
Status Indicators:
Front Bezel Tri-color LED: Amber/Green/Red.
Power-Supply:
Voltage [V]: +24VDC ±20% (19.2 V to 28.8 V, 3-Pin Connector) Isolated.
Power Consumption:
Maximum Wattage (W): 11 W.
Protection-Class:
Front-Side IP66 (When Installed to a Wall/Panel).
Back-Side IP20.
Design:
Housing: Aluminium Die Casting (Front).
Environment Operating Temperature: -20°C to +65°C.
Storage Temperature: -30°C to +70°C.
Operating Humidity: 85% RH (non- condensing) @ 30°C.
Operating Altitude: 10000 f t. (3.000 m).
Vibration: 1Grms / 5 ~ 500Hz (Random) / Operation IEC 60068-2-64 10G peak acceleration (11 msec. duration)/operation IEC 60068-2-27.
Compliance certifications:
UL and cUL 62368, UL and cUL 61010, IECEE CB Scheme.
UL TYPE 4 & 4X, IP66 (ANSI/IEC 60529).
CE (EN 62368, EN 61000-6-4, 61000-6-2).
FCC Part15 Class A.
RoHS.
UL Listed US/CAN Hazardous Locations: Class 1 Division 2, Class 2 Division 2, Class 3 Division 1.
ATEX Zone 2/22 & IECEx.
Marine: ABS, BV, LR, DNV GL.
Mounting:
Panel Cutout Dimensions (W x H, mm): 255.5 x 174.
VESA Mounting: 75 x 75.
Hardware Included: Mounting Clamps and Allen Screws.
Physical Specification:
Net Weight (kg): 2.6.
Dimensions (W x H x D, mm): 267 x 186.2 x 65.
