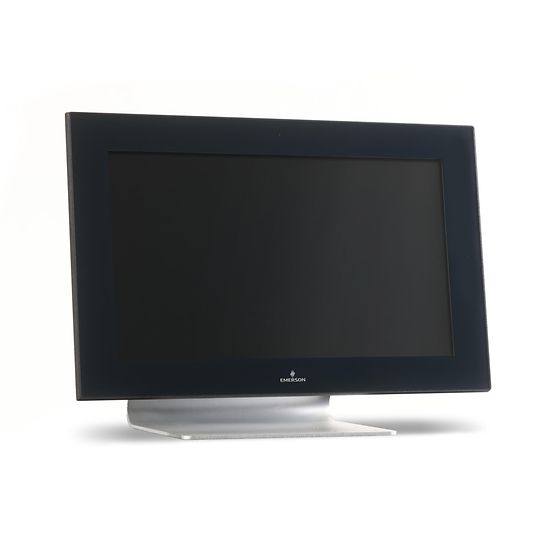

PACSystems™ RXi - Panel PC with 7" screen (4GB RAM, 32GB SSD)
SKU: IC758CSWA07PC
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The RXi - Panel PC modular display portfolio, which includes a variety of separate displays and computer components, maximizes flexibility, performance, and durability.
Features:
The modular architecture enables you to switch between processing units with dual or quad core processors and 4 to 16GB of accessible RAM.
The Windows 10 IOT Enterprise LTSC operating system is deployed as standard.
Easily choose between screen sizes ranging from 7" to 24" in a widescreen format.
Operate well in temperatures as high as 65 degrees Celsius and as low as -20 degrees Celsius, both indoors and outdoors.
IP66-rated screens defend against dust, moisture, and even direct water jets.
Specifications:
Touch Screen: Projected Capacitive Touch (PCT/PCAP), Multi-touch (10-point).
Status Indicator: Tri-colour LED.
Operating System: Windows 10 IOT Enterprise LTSC.
Certifications: UL, CE, FCC, RoHS, ATEX, IECEx.
Marine: ABS, BV, DNV GL, LR.
UL Listed US/CAN HazLoc: Class 1 Division 2, Class 2 Division 2, Class 3 Division 1.
RAM: 4GB.
SSD: 32GB.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display:
Resolution: 1024 x 600 WSVGA.
Format: Widescreen (16:10).
Orientation: Landscape.
Reading Angle (°): 150 (H) / 145 (V).
Display Off-Colour: Black.
Contrast: 800:1.
Brightness (cd/m2): 500 (1000 with Outdoor SLR Screen).
MTBF Backlighting: 50 000 h (at 25°C).
Backlight: LED, Dimmable via Software.
Processor:
Chipset: AMD Embedded G-Series SOC.
Processor: GX-210HL.
# of cores/TDP: 2/7W.
CPU frequency/L2 Cache: 1.0Ghz/1MB.
GPU frequency: 267Mhz.
Memory:
Capacity: 4GB or 8GB DDR3L (Soldered with ECC, -40°C ~ 85°C).
Storage:
Internal: 32 / 64 / 128GB MLC SSD (SATA Slim, -40°C ~ 85°C).
External Slot: 1 x External Micro SD/ SDHC Card Slot (up to 32GB).
Watchdog Timer:
Timer Levels: 255 timer levels, set up by software.
Operating Control:
Method: Touch.
Touchscreen:
Technology: Projected Capacitive Touch (PCT/PCAP).
Touch Sensor: Multi-touch (Ten-Point).
Interfaces:
Port 1: 2 x 10/100/1000, Base T Ethernet RJ45.
Port 2: 1 x RS-232 COM Port (5-Pin Connector), 1 x RS-485 COM Port (5-Pin Connector), Isolated.
Port 3: 2 x USB 3.0 (Type-A).
Port 4: 1 x DisplayPort.
Port 5: 1 x Mic In (Mono), (3.5mm Jack).
Port 6: 1 x Line Out (Stereo), (3.5mm Jack.
Status Indicators:
Front Bezel Tri-colour LED: Amber/Green/Red.
On-board Buzzer: Yes (85dB sound level with 80mA mean current).
Power-Supply:
Voltage [V]: +24VDC ±20% (19.2 V to 28.8 V, 3-Pin Connector, Isolated, Use 28-14 AWG (0.2 - 1.5 sqmm) wire rated 90C, 1.7 in-lbs (0.19Nm) torque).
Power Consumption:
Maximum Wattage (W): 20 W.
Protection-Class:
Front-Side IP66 (When Installed to a Wall/Panel).
Back-Side IP20.
Operating System:
Installed Standard: Windows 10 IOT Enterprise 2019 LTSC.
Software Tools:
Tool 1: Secure & Trusted Boot Capability.
Tool 2: DHCP-Client, Web Browser (IE or FireFox), Java JRE Capability.
Secure & Trusted Boot:
Item 1: On-Board TPM2.0.
Design:
Housing: Aluminium Die Casting (Front).
Construction Type: Modular (Detachable Modules; Computer, Monitor, Touch Display, DIO).
Cooling Natural Convection (Fanless Passive Cooling).
Environment:
Operating Temperature: -20°C to +65°C.
Storage Temperature: -30°C to +70°C.
Operating Humidity: 85% RH (non- condensing) @ 30°C.
Operating Altitude: 10000 f t. (3.000 m).
Vibration: 1Grms / 5 ~ 500Hz (Random) / Operation IEC 60068-2-64 10G peak acceleration (11 msec. duration)/operation IEC 60068-2-27
Compliance certifications:
UL and cUL 62368, UL and cUL 61010, IECEE CB Scheme.
UL TYPE 4 & 4X, IP66 (ANSI/IEC 60529).
CE (EN 62368, EN 61000-6-4, 61000-6-2).
FCC Part15 Class A.
RoHS.
UL Listed US/CAN Hazardous Locations: Class 1 Division 2, Class 2 Division 2, Class 3 Division 1.
ATEX Zone 2/22 & IECEx.
Marine: ABS, BV, LR, DNV GL.
Mounting:
Panel Cutout Dimensions (W x H, mm): 183.5 x 128.5.
VESA Mounting: 75 x 75.
Hardware Included: Mounting Clamps and Allen Screws.
Physical Specification:
Net Weight (kg): 2.0.
Dimensions (W x H x D, mm): 192 x 137 x 65.
