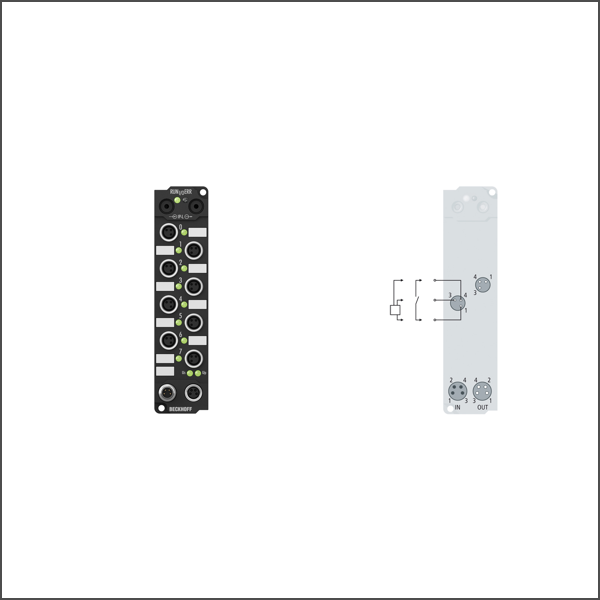

IE1001 Extension Box
SKU: IE1001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The IE1001 digital input module acquires the binary control signals from the process level and transmits them to the higher-level automation unit. The input filter is 3.0 ms.
Buy currently uses Select Automation shop pricing and checkout.
Number of inputs: 8
Input connections: M8, screw type
Nominal input voltage: 24 V DC (-15 %/+20 %)
Input filter: 3.0 ms
“0” signal voltage: -3…+5 V (EN 61131-2, type 2)
“1” signal voltage: 11…30 V (EN 61131-2, type 2)
Input current: typ. 6 mA (EN 61131-2, type 2)
Sensor supply: from control voltage, max. 0.5 A, short-circuit proof in total
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Bit width in the process image: 8 inputs
Current consumption: from US (without sensor current) 25 mA
Electrical isolation: channels/control voltage: no, between the channels: no, control voltage/fieldbus: yes, via IP-Link
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
