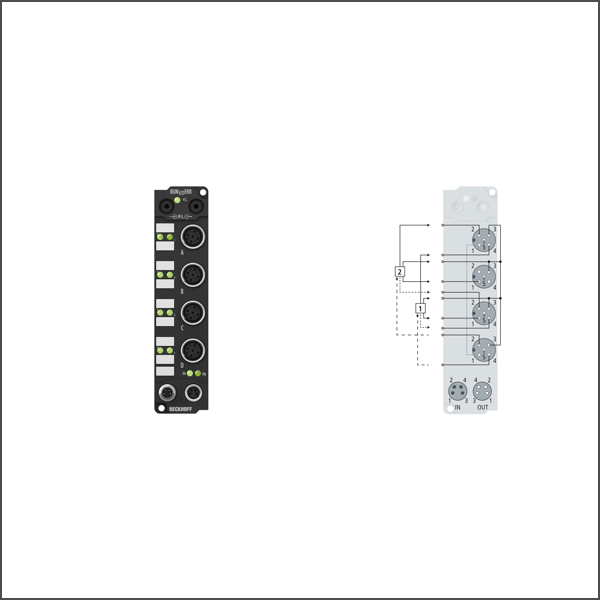

IE1502 Extension Box

Number of inputs: 2 counter inputs + 2 gate inputs + 2 up/down switches Number of counters: 2, each with a depth of 32 bits Counting frequency: 100 kHz (2 kHz for switching between up and down) Signal connection: M12, screw type Nominal input voltage: 24 V DC (-15 %/+20 %) “0” signal voltage: -3…+5 V (EN 61131-2, type 2) “1” signal voltage: 11…30 V (EN 61131-2, type 2) Number of outputs: 2 x 24 V DC, 0.5 A, individually short-circuit-proof Sensor supply: from control voltage, max. 0.5 A, short-circuit proof in total Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin Bit width in the process image: 80 inputs/outputs: 2 x 32 bit data (2 x 8 bit control/status) Current consumption: from US (without sensor current) 25 mA Electrical isolation: channels/control voltage: no, between the channels: no, control voltage/fieldbus: yes, via IP-Link Operating/storage temperature: 0…+55 °C/-25…+85 °C Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable Approvals/markings: CE, UL
