IE2002 Extension Box
SKU: IE2002
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

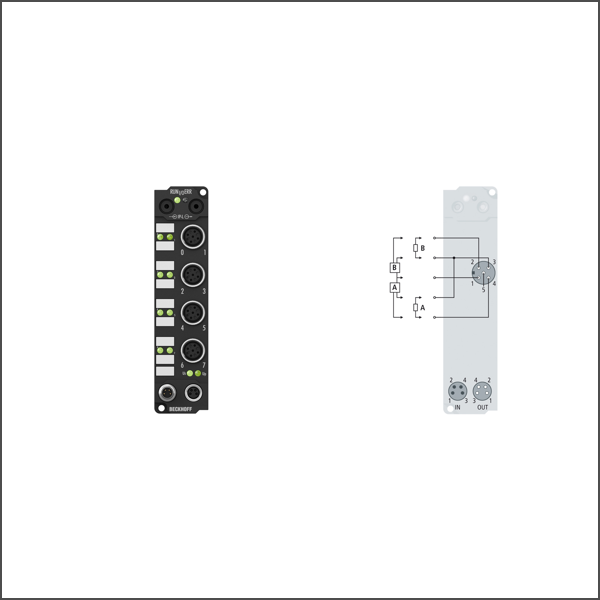

The IE2002 digital output module connects the binary control signals from the automation unit on to the actuators at the process level. The eight outputs handle load currents of up to 0.5 A and indicate their status through light emitting diodes.
Buy currently uses Select Automation shop pricing and checkout.
Number of outputs: 8
Output connections: M12, screw type
Load type: ohmic, inductive, lamp load
Nominal output voltage: 24 V DC (-15 %/+20 %)
Max. output current: 0.5 A per channel, individually short-circuit proof
Short-circuit current: typ. 1.5 A
Auxiliary power current: typ. 20 mA per channel
Current consumption: from US (without sensor current) 25 mA
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Bit width in the process image: 8 outputs
Electrical isolation: channels/control voltage: no, between the channels: no, control voltage/fieldbus: yes, via IP-Link
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
