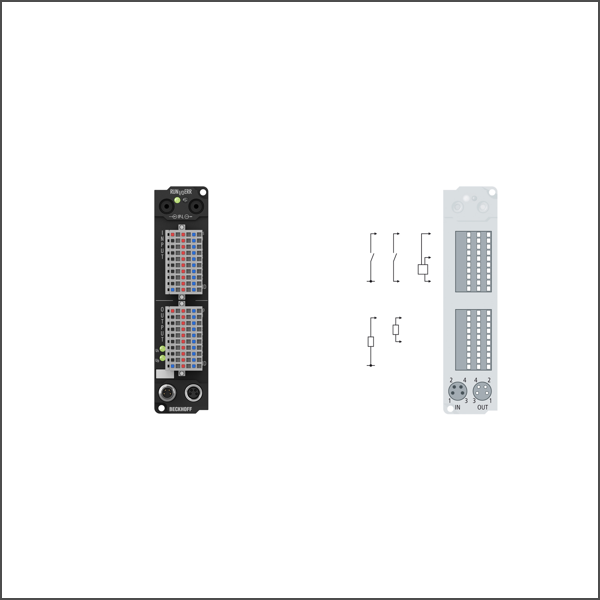

IE2403 Extension Box

Number of channels: 8 inputs + 8 outputs Input/output connections: connector with spring-loaded system Input filter: 3.0 ms “0” signal voltage: -3…+5 V “1” signal voltage: 11…30 V, 6 mA input current (EN 61131-2, type 2) Sensor supply: from control voltage, max. 0.5 A, short-circuit proof in total Load type: ohmic, inductive, lamp load Rated load voltage: 24 V DC (-15 %/+20 %) Max. output current: max. 0.5 A per channel, individually short-circuit proof Short-circuit current: typ. 1.5 A Auxiliary power current: typ. 20 mA per channel Current consumption: from US (without sensor current) 25 mA Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin Bit width in the process image: 8 inputs + 8 outputs Electrical isolation: channels/control voltage: no, between the channels: no, control voltage/fieldbus: yes, via IP-Link Operating/storage temperature: 0…+55 °C/-25…+85 °C Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos.: IP20/variable Approvals/markings: CE, UL
