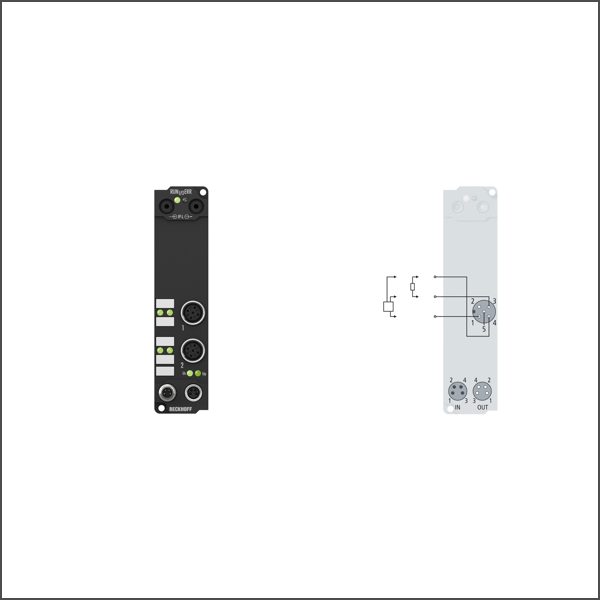

IE2512 Extension Box

Number of outputs: 2 Output connections: M12, screw type Load type: ohmic, inductive Nominal output voltage: 24 V DC (-15 %/+20 %) Max. output current: 2.5 A per channel, individually short-circuit proof Current consumption: from US (without sensor current) 25 mA Up/down channel: 24 V DC, 0.5 A, short-circuit proof Base frequency: 8 Hz…40 kHz, default: 250 Hz Duty factor: 0…100 % (TON > 750 ns, TOFF > 500 ns) Resolution: max. 10 bit Freewheeling diode (output): yes Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin Bit width in the process image: 48 inputs/outputs: 2 x 16 bit data, 2 x 8 bit control/status Electrical isolation: channels/control voltage: no, between the channels: no, control voltage/fieldbus: yes, via IP-Link Operating/storage temperature: 0…+55 °C/-25…+85 °C Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable Approvals/markings: CE, UL
