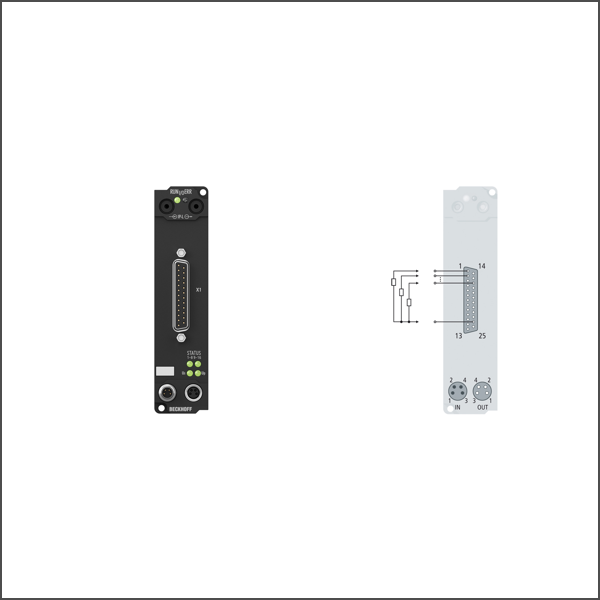

IE2808 Extension Box
SKU: IE2808
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The IE2808 digital output module connects the binary control signals from the automation unit on to the actuators at the process level. The sixteen outputs handle load currents of up to 0.5 A each, although the total current is limited to 4 A. Error handling: fault acknowledgement by master required.
Buy currently uses Select Automation shop pricing and checkout.
Number of outputs: 16
Output connections: D-sub socket, 25-pin, UNC4-40
Load type: ohmic, inductive, lamp load
Nominal output voltage: 24 V DC (-15 %/+20 %)
Max. output current: 0.5 A per channel, individually short-circuit proof, ∑ 4 A
Short-circuit current: max. 1.5 A
Auxiliary power current: typ. 30 mA
Current consumption: from US (without sensor current) 25 mA
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Error handling: fault acknowledgement by master required
Bit width in the process image: 16 outputs, 16 inputs (diagnostics) optional: control/status
Electrical isolation: channels/control voltage: no, between the channels: no, control voltage/fieldbus: yes, via IP-Link
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
