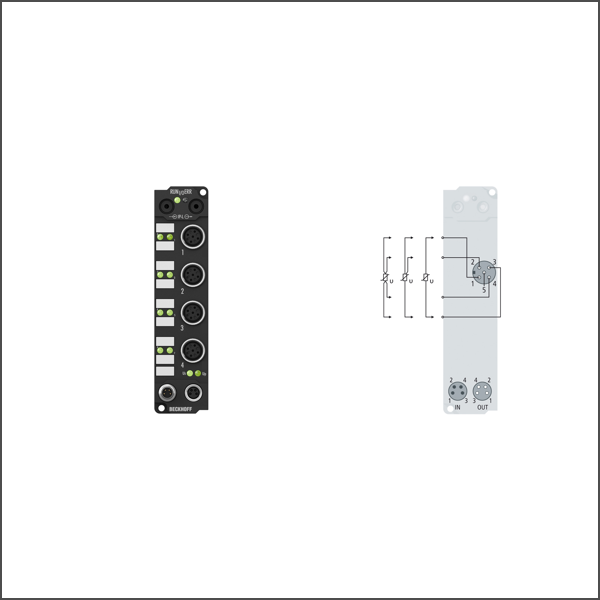

IE3202 Extension Box

Number of inputs: 4 Connection method: screw type M12 for 2-, 3- and 4-wire connections, presetting: 4-wire Sensor types: Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (e.g. potentiometer) Measuring range: -250…+850 °C (Pt sensors); -60…+250 °C (Ni sensors) Resolution: 0.1 °C per digit Measurement error/ uncertainty: < ±1 °C Conversion time: approx. 250 ms, configurable up to 65 ms Nominal voltage: 24 V DC (-15 %/+20 %) Measuring current: typ. 0.5 mA Input filter: 5 variations, configurable Sensor supply: from control voltage US Current consumption: from US (without sensor current) 40 mA Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin Bit width in the process image: input: 4 x 16 bit data (4 x 8 bit control/status optional) Electrical isolation: channels/control voltage: 500 V, between the channels: no, control voltage/fieldbus: yes, via IP-Link Operating/storage temperature: 0…+55 °C/-25…+85 °C Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable Approvals/markings: CE, UL
