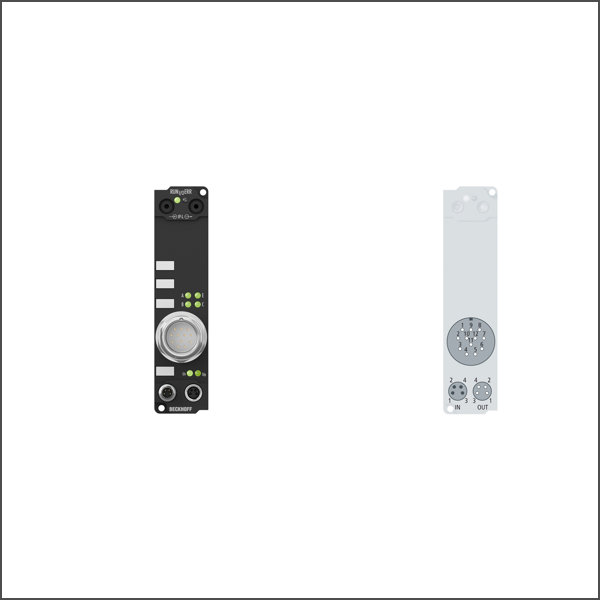

IE5009 Extension Box

Number of channels: 1 SSI encoder connection: M23 connector with outer thread, 12-pin Nominal voltage: 24 V DC (-15 %/+20 %) Signal input: difference signal (RS485) Encoder supply: 24 V DC, from load voltage Data transfer rates: variable up to 1 MHz, 250 kHz default Serial input: 24 bits (adjustable) Data direction: read Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin Current consumption: from US (without sensor current) 55 mA Bit width in the process image: input: 1 x 32 bit data (1 x 8 bit control/status optional) Electrical isolation: yes, via IP-Link Operating/storage temperature: 0…+55 °C/-25…+85 °C Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable Approvals/markings: CE, UL
