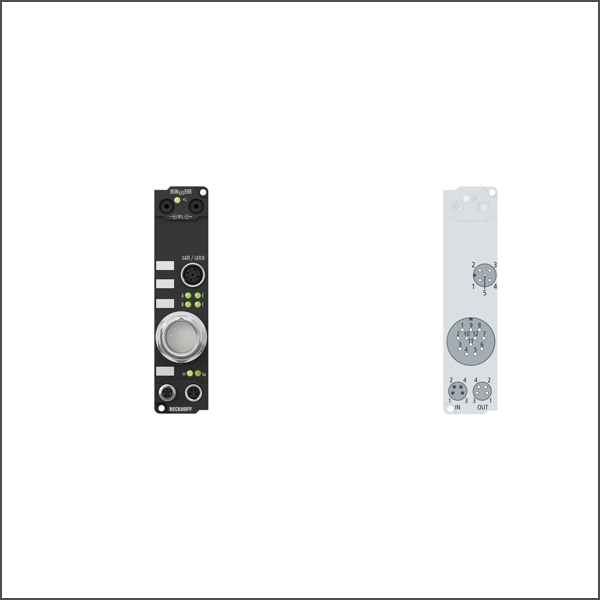

IE5109 Extension Box
SKU: IE5109
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The IE5109 module is an interface for the direct connection of incremental encoders with differential inputs (RS485) or with single inputs. A 16 bit counter with a quadrature decoder and a 16 bit latch for the zero pulse can be read, set or enabled.
Buy currently uses Select Automation shop pricing and checkout.
Number of channels: 1
Connection encoder/sensor: M23 connector with outer thread, 12-pin
Nominal voltage: 24 V DC (-15 %/+20 %)
Gate/latch connection: M12, screw type
Encoder supply: 5 V DC
Sensor supply: from control voltage, max. 0.5 A, short-circuit proof in total
Counter : 16 bit, binary
Limit frequency: 1 MHz (with 4-fold evaluation)
Quadrature decoder: 1-, 2-, 4-fold evaluation
Zero-pulse latch: 16 bit
Commands: read, set, enable
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Current consumption: from US (without sensor current) 55 mA
Bit width in the process image: input/output: 2 x 16 bit data + 1 x 8 bit control/status
Electrical isolation: yes, via IP-Link
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
